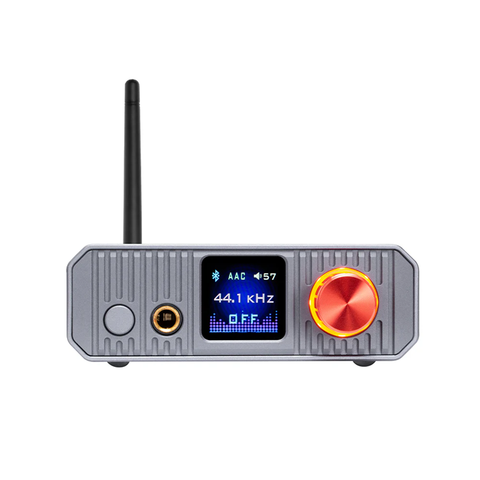

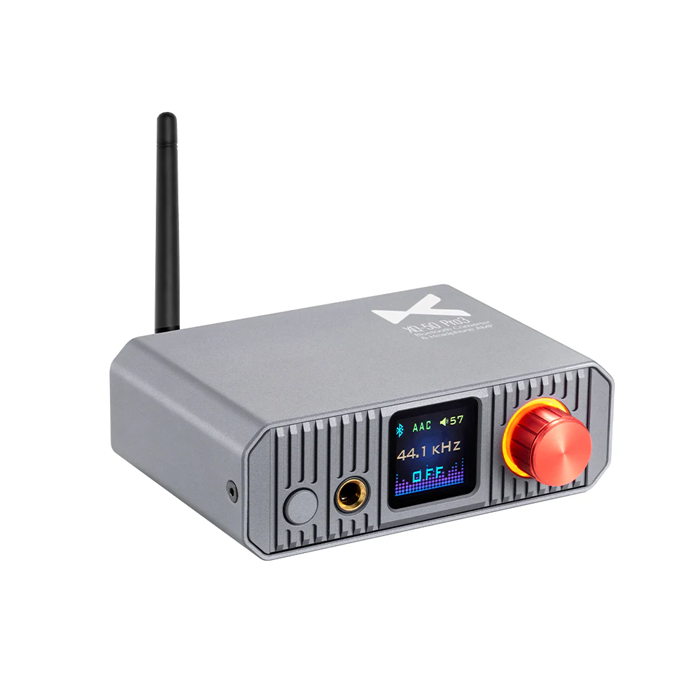

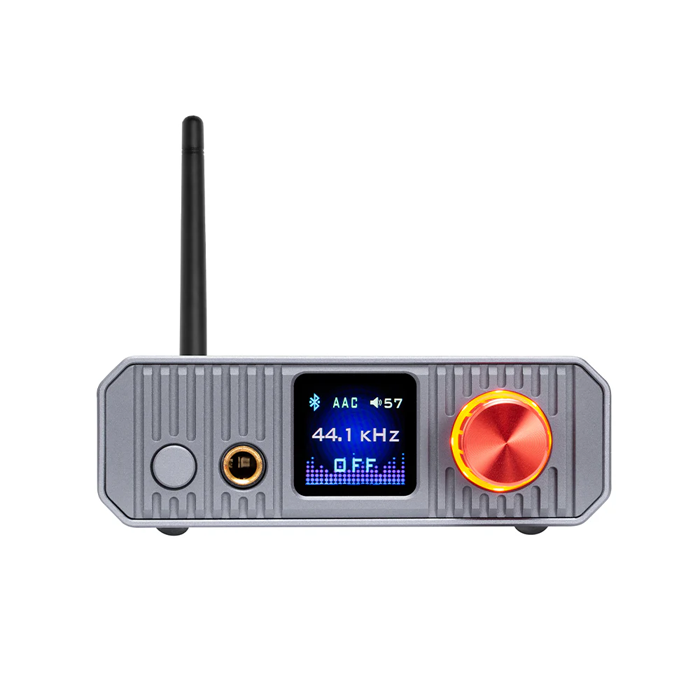

Bluetooth CS43131 DAC Amplifier
Ini perkiraan kasar. Itu dapat berubah tanpa pemberitahuan sebelumnya.
Minimum Order 200.000
DKI Jakarta, Banten, dan Jawa Barat Tanpa Minimum Order
High Performance Digital Conversion Chip
Adopt high performance CS8406 digital conversion chip, transform the Blue-tooth signal into high quality optical fiber/coaxial signal out.
High Performance DAC Chip
Adopt the high performance CS43131 DAC chip which can ensure high S/N and very low distortion.
Bluetooth 5.1 Support Various HD Bluetooth Format
Adopts Qualcomm's QCC5125 Bluetooth receiver chip supports SBC, AAC, aptX, aptX LL, aptX HD, LDAC signal. It will ensure high quality sound to give your amplifier or headphones new life and to allow them to once more to resonate with you.

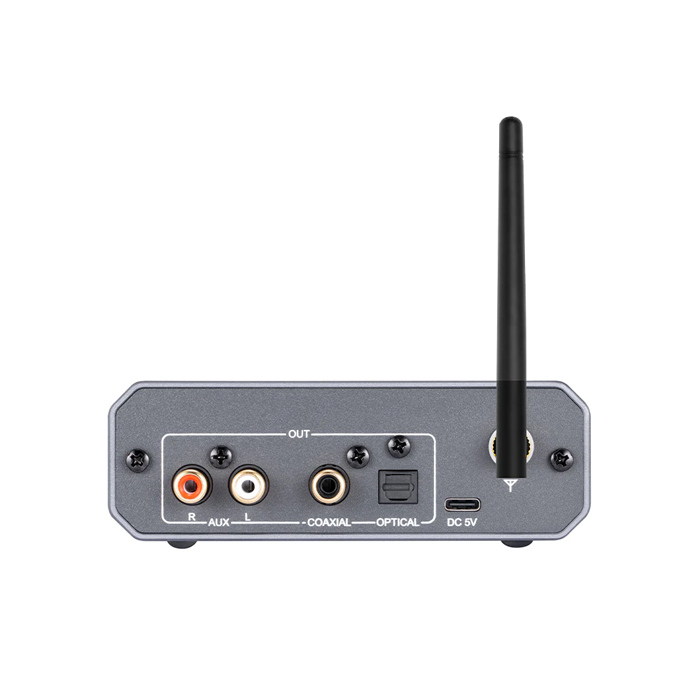

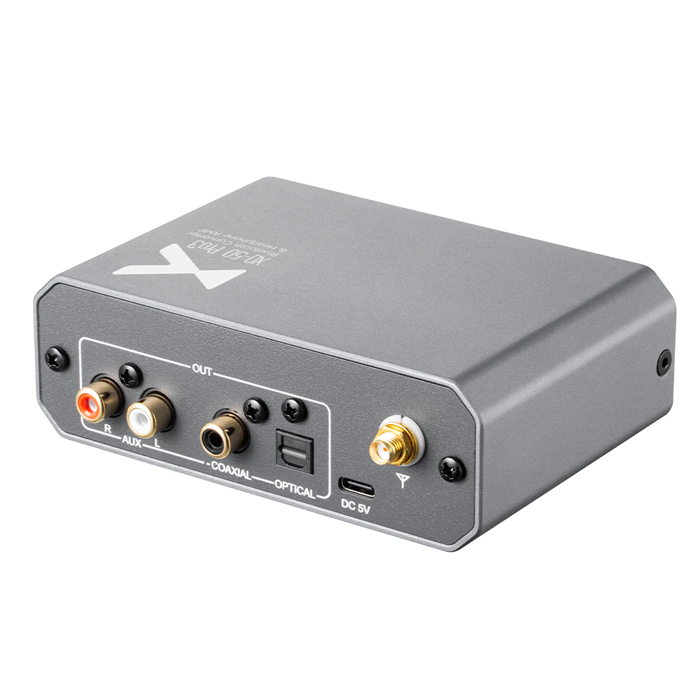

Rich Output Interfaces
With headphone output, the output power up to 360mW can drive many kinds of headphones.

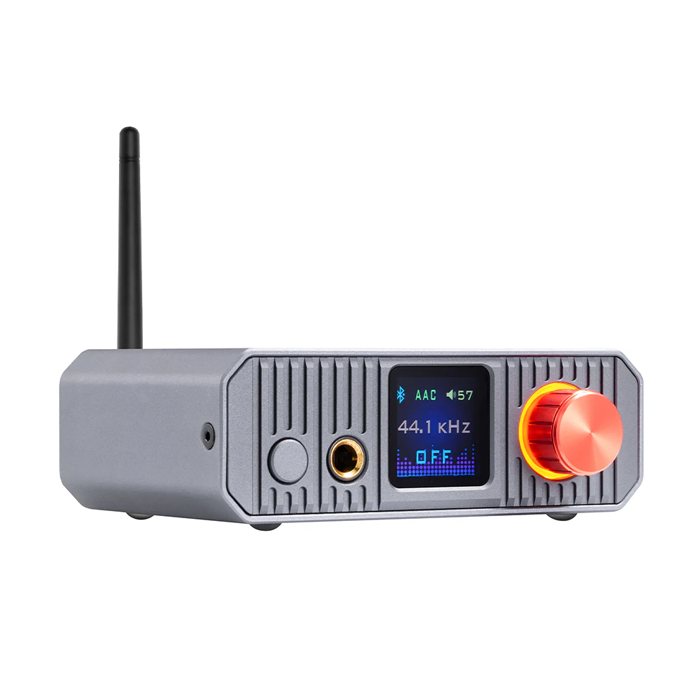

1.3-inch Color Screen
With Color screen, the Bluetooth connection status / encoding format / sam-pling rate/song name and other information can be displayed visually, so that you can know the working status at any time.
Specification:
POWER SUPPLY: DC5V/1A
BLUETOOTH VERSION: 5.1
SUPPORTED AUDIO FORMAT: SBC, AAC, APTX、 APTX LL、 APTX HD, LDAC
COMMUNICATION RANGE: ABOUT 10 METERS
HEADPHONE OUTPUT PARAMETERS:
OUTPUT POWER: 360MW(320HMS@1KHZ)
THD+N: 0.008%
SNR: 115DB
CROSSTALK: 85DB
SIZE: 10.0*12.0*4.2CM
WEIGHT: 0.34KG
ACCESSORIES:
- TYPE-C cable*1, Bluetooth antenna*1
- Manual*1, Warranty Card*1, 6.35 to 3.5 Converter*1
