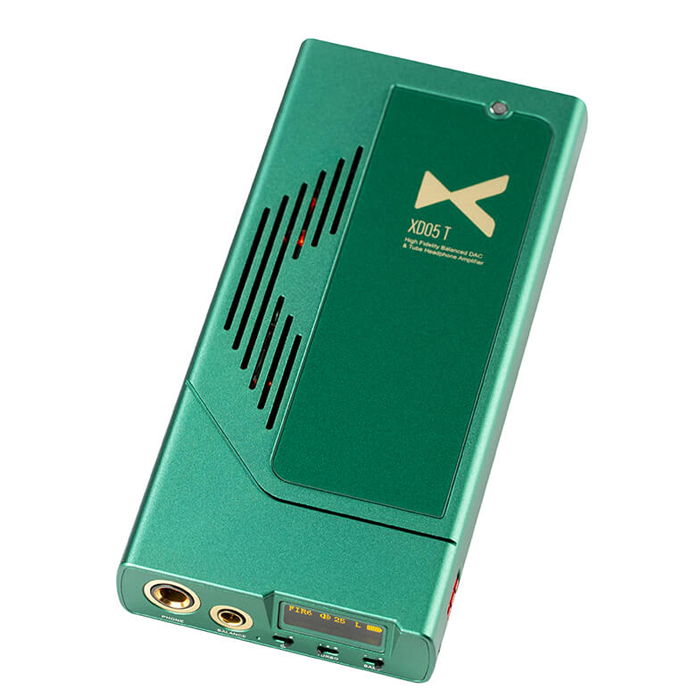

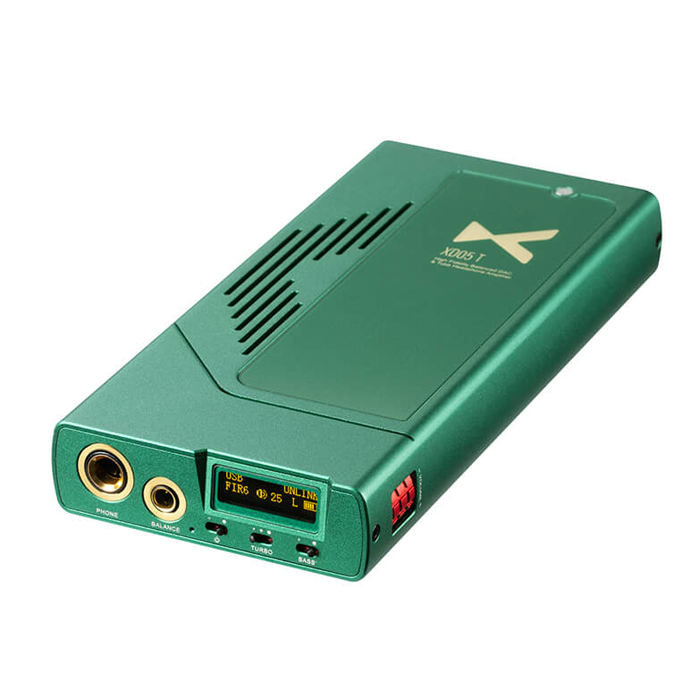

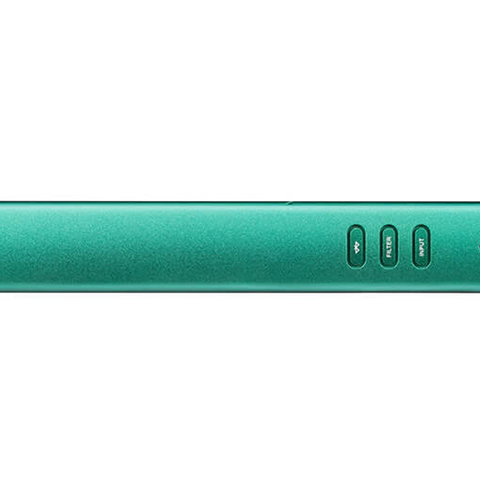

Dual ESS ES9039Q2M Portable Bluetooth Tube DAC Amplifier
Ini perkiraan kasar. Itu dapat berubah tanpa pemberitahuan sebelumnya.
Minimum Order 200.000
DKI Jakarta, Banten, dan Jawa Barat Tanpa Minimum Order
Classic Sound with Carefully Selected Vintage Tubes
Tubes still hold a special place in audio amplifiers, and the XD05T takes full advantage of that with two miniature tubes from the 1960s. These carefully selected, meticulously paired vintage tubes add a touch of even-order harmonics, delivering a soft, warm sound full of emotional depth.
Hybrid Circuit
xDuoo recognizes the crucial role of the preamplifier in shaping overall sound quality. To highlight the distinctive "tube sound," xDuoo integrates a vacuum tube into the preamplifier stage. For enhanced driving power, transistors are employed in the current amplification stage. When driving 300-ohm headphones, the power reaches up to 556mW!
Rich and Practical Adjustment Functions

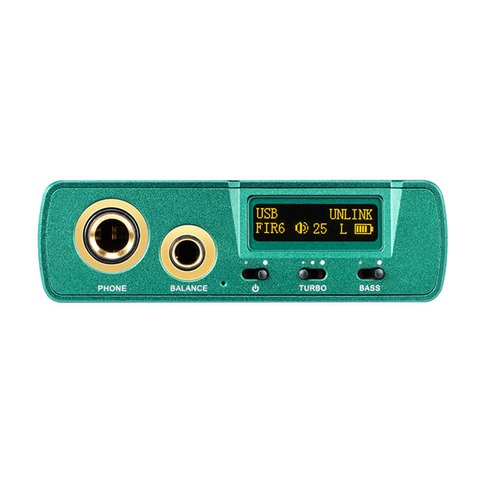

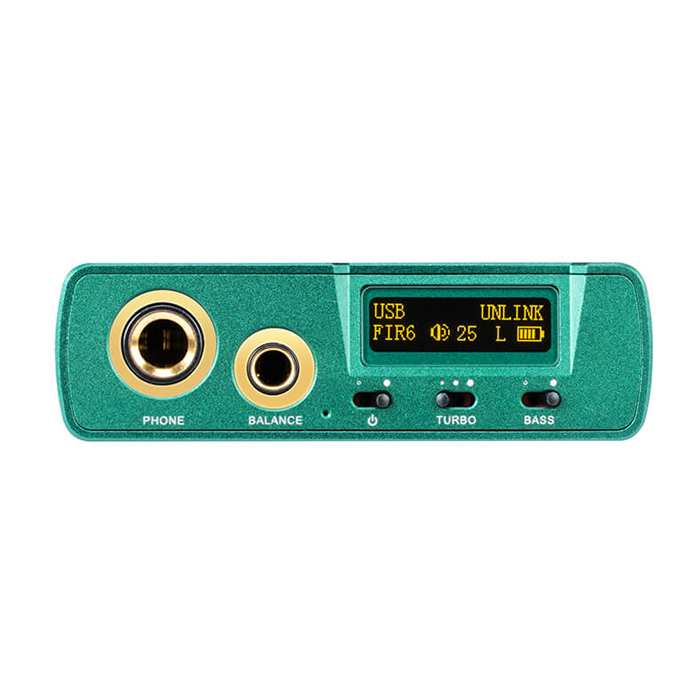

The XD05T offers three gain levels to adapt to a variety of headphones. The TURBO (L) setting is ideal for IEMs, TURBO (M) suits low-impedance headphones, and TURBO (H) is tailored for high-impedance headphones.
Desktop + Portable – Two Working Modes

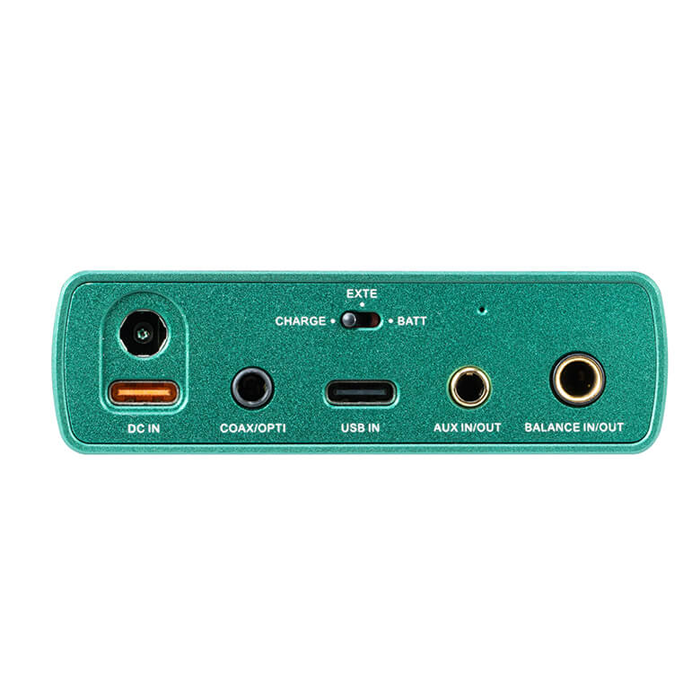

The XD05T offers dual power options—battery and DC—allowing for both portable and desktop use. When you need desktop-level performance, simply connect a professional Hi-Fi power supply to switch to desktop mode, unlocking enhanced capabilities.
Note: The DC power supply is sold separately. Also, as the device generates heat during operation, avoid placing it in a bag or confined space while in use.
Specification
DAC Chip: Dual ESS ES9039Q2M
USB Support Formats: PCM 16-32Bit / 44.1kHz-768kHz, DSD64-512, MQA 1-8X
Bluetooth Chip: QCC5125, Bluetooth 5.1
Bluetooth Formats: SBC, AAC, APTX, APTX_LL, APTX_HD, LDAC
Unbalanced Output: Output Power: 32Ω @ 750mW (THD+N < 5%), 300Ω @ 83mW (THD+N < 5%)
Balanced Output: Output Power: 32Ω @ 1500mW (THD+N < 5%), 300Ω @ 565mW (THD+N < 5%)
Battery: 3.7V / 6000mAh
Battery Life: USB IN/SPDIF IN ≥ 4H, AUX IN ≥ 4.5H
Charging Time: about 3.5 hours (fast charging), 10 hours (slow charging)
Size: 16.8 x 7.8 x 2.3 cm
Weight: 0.4 kg
