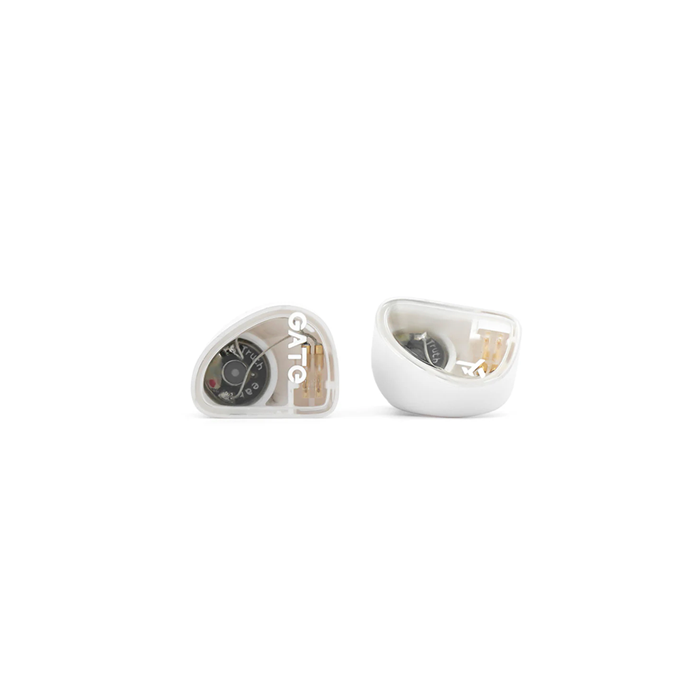

TruthEar GATE

N52 Magnet

Adopting N52 magnet double-cavity internal magnetic circuit dynamic driver, with a brand-new carbon LCP high-rigidity diaphragm. Brand-new cavity ID design, High quality oxygen-free copper cable, Excellent objective indicators.

0.78mm 2pin interchangeable design

GATE is designed as a cost-effective and comfortable IEM. Its appearance has been redesigned, the weight of the cavity has been reduced, and the diaphragm and acoustic structure of driver has been further optimized. Meanwhile, GATE uses 0.78mm 2pin interchangeable design for convenience and expanded playability.

10mm Dynamic Driver

Optimize the structure and diaphragm rigidity of driver, GATE uses a 10MM internal magnetic circuit dynamic driver with frontal-cavity filter optimization and diaphragm specialization. Diaphragm: GATE uses a new carbon LCP diaphragm material, making it more rigid than the standard LCP diaphragm, improving high-frequency sensitivity. The ultra-thin PU further enhances the bass texture and ensures safe diaphragm operation.

High-Quality Oxygen-Free Cable

GATE ships with multi-core high-quality oxygen-free copper cable, 2pin thick-twisted-pair with high-quality cable-skin for a tangle-free experience, and combines with universal 0.78mm 2pin socket (the cavity is female sunken type) for a convenient and reliable usage.

Specification:

• Driver: 10mm Dynamic Driver
• Diaphragm Material: Carbon LCP Dome Composite Ultra-thin PU Diaphragm
• Impedance: 28Ω±15%@1kHz
• Sensitivity: 122dB/Nrms@1KHz
• Total Harmonic Distortion: THD≤1%@1kHz (94dB)
• Frequency Response Range: 10-45kHz (IEC61094, Free Field)
• Effective Frequency Response Range: 20-20KHz (IEC60318-4, -3dB)

What In Box?

1. TRUTHEAR GATE * 1
2. High-quality Oxygen-free Copper Cable
3. Ear-tips * 4pairs (S, M, L, XL) (Thick Diameter)
4. Ear-tips * 3pairs (S, M, L) (Thin Diameter)
5. Manual * 1
6. Warranty card * 1
