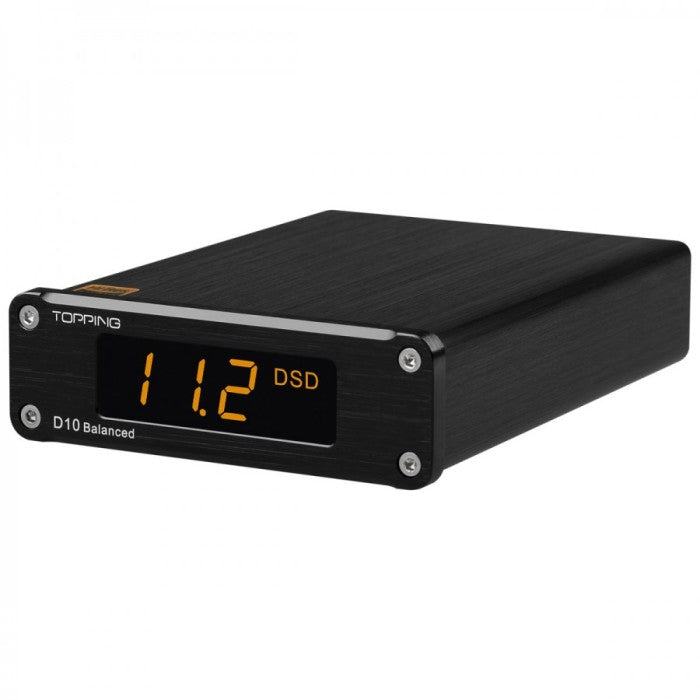

Topping D10 Balanced

Your Trusted D10 With Balanced Output Now.

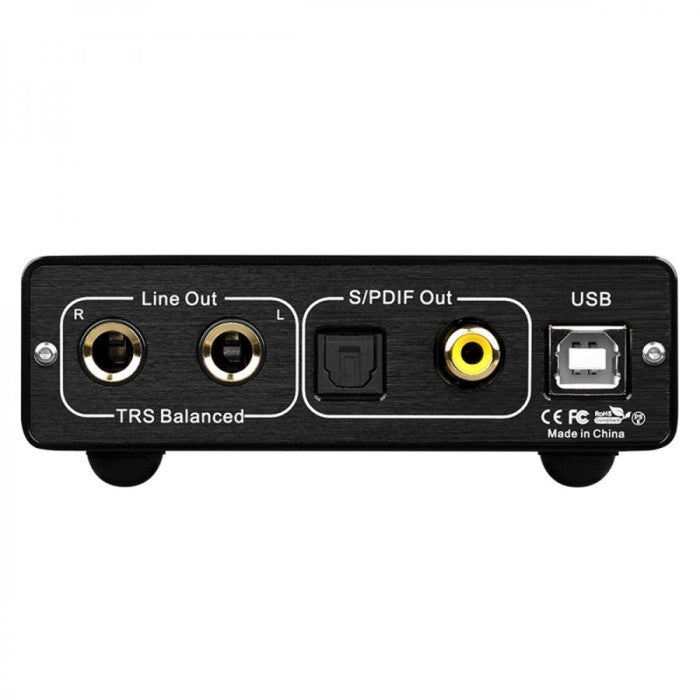

Topping D10 series of USB DACs have always been the talk of the town for their excellent performance. The latest D10B follows that path but this time bringing us a balanced connection. It has a fully balanced TRS line-out option that can also be used to get a 3-Pin XLR line-out via the included adapters. Please note, D10B doesn't support single-ended output even with adapters.

Bring The Power Of High-Performance SABRE DAC Now.
Topping D10B features a widely trusted ES9038Q2M DAC chip from ESS Sabre Technologies. It provides ultimate high-resolution audio signal decoding performance with a clean, noise-free sound signal decoding. It helps the D10B achieve high-class performance with ultra-low distortion and high SNR ratings. Topping D10B achieves an ultra-low distortion rating of just 0.00012%.

XMOS Latest USB Processor.
Topping D10B is equipped with the latest-gen XU208 XMOS USB signal receiver that allows high-resolution signal decoding via USB connection. It supports PCM decoding up to 32Bit/384kHz and DSD up to DSD256 natively. Topping has developed a customized ASIO driver for the Windows system to unlock the full potential of D10B.

Automatic On/Off Feature With USB Source.
Topping D10B doesnt need any external power adapters. It takes the required power through the connected USB source as it has very low power requirements. It automatically turns on/off whenever you turn your PC on or off.

Technical Parameters :
USB In (Plug & Play).
Line-Out : 6.35mm TRS(No Single-Ended Output).
THD+N@1kHz A-weighted : <0.00012%.
THD : <0.00015% @ 20Hz-20kHz.
SNR : 125dB.
Dynamic Range : 125dB.
Frequency Response : 20Hz-20kHz.
Output Level : 4.2Vrms@0dBFS.
Noise : <2.4uVrms.
Channel Crosstalk : -141dB.
Channel Balance : 0.3dB.
Output Impedance : 88 ohm.
