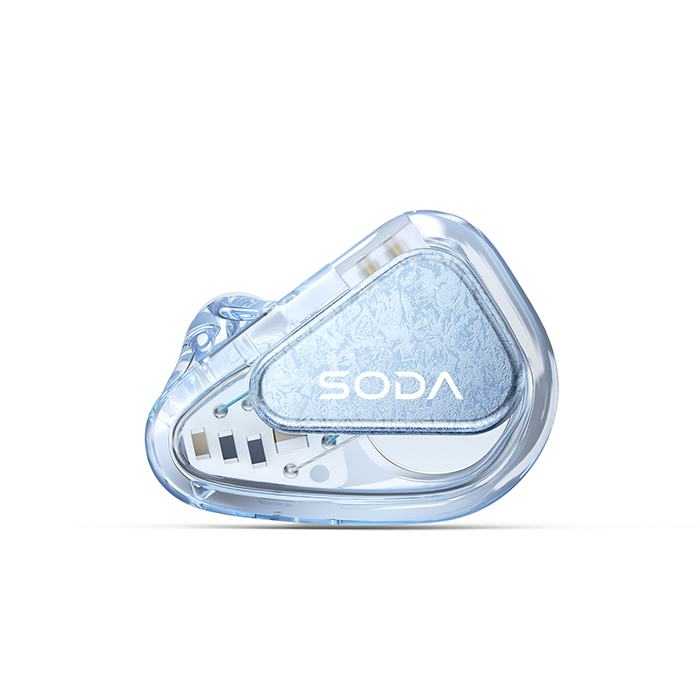

Tanchjim SODA

PURE × DMT5 × Silk System First Integration

SODA is the first product in the TANCHJIM lineup to feature PURE Series balanced armature drivers. It combines two PURE ultra-high-frequency units and two PURE mid-to-high-frequency units, with low frequencies handled by a 10mm dynamic driver based on the DMT5 architecture, supported by two Silk System passive units.

High-Quality Earphone Cable Included

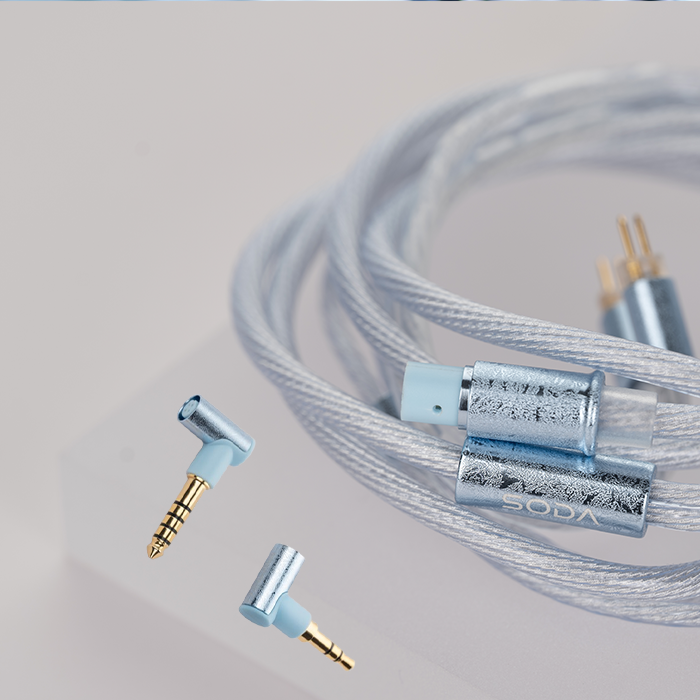

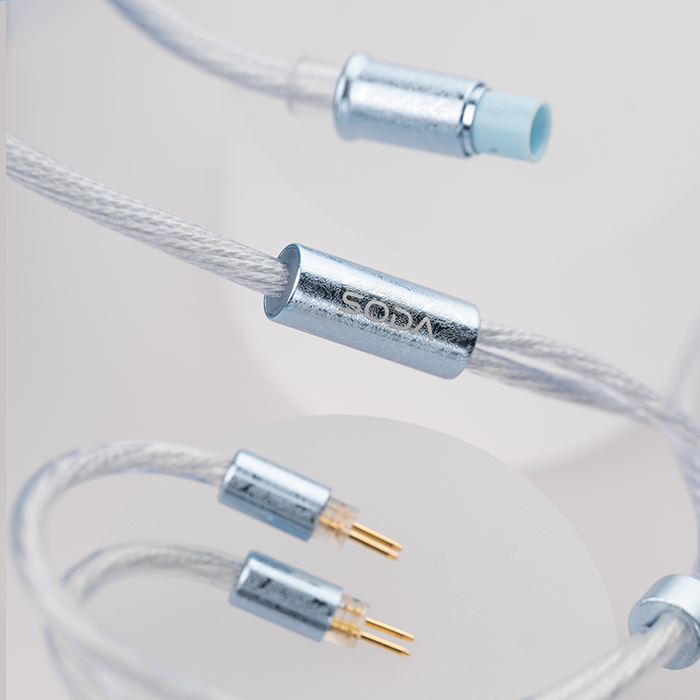

The high-quality earphone cable supplied with SODA is based on CABLE X’s Litz multi-strand braiding technology, effectively controlling resistance and inductance to deliver clearer high frequencies and low frequencies with greater elasticity and depth.

HPFD-Seg 3 Way Precision Crossover System

By more effectively activating the performance windows of each driver, it achieves lower distortion, more accurate response, and a more complete dynamic presentation.

Ergonomic Design

The compact driver stacking structure efficiently concentrates acoustic volume, with the shell angle precisely matched to the ear canal inclination to reduce reflections and improve the purity of direct sound.

Precision Physical Filtering Structure

To meet the stringent requirements of physical filtering, TANCHJIM SODA utilizes high-precision DLP 3D printing technology to fabri-cate its filter structures.

Specification

Brand: TANCHJIM

Model: SODA

Driver Configuration: 10mm DMT 5 Dynamic + 2 × PURE Mid BA + 2 × PURE Hi BA + 2 × SS Passive Units

Diaphragm Material: PU Surround DLC Dome Composite Diaphragm

THD (Total Harmonic Distortion): 0.5% @1kHz 94dB

Impedance: 15.5 Ohm

Sensitivity: 120dB/Vrms

Frequency Response: 8–48kHz

Cable Specification: 0.78 2Pin to 4Pin Interchangeable

Plug, included: 3.5mm, 4.4mm plugs

Cable Material & Structure: High-Purity Silver-Plated Copper, Densely Braided Litz Coaxial Structure

Whats In The Box

1. Earphone Pair 1x

2. Cable 1x + Jack 3.5mm & 4.4mm

3. T-APB Pressure-Balancing Eartips 6x

4. PVC Leather Case

5. Manual
