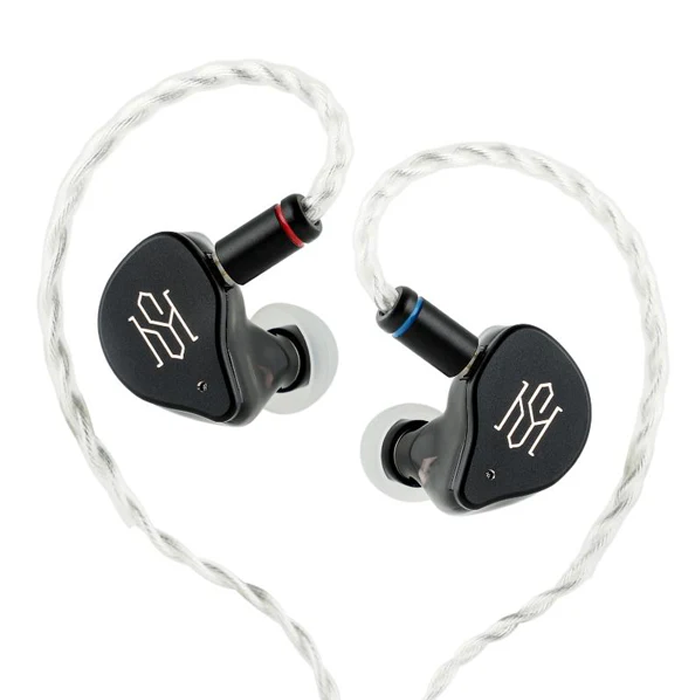

SIMGOT SuperMix 5

Five-in-one Matrix Acoustic Architecture

SuperMix 5 employs a luxurious five-driver configuration of ‘dynamic driver x 1 + balanced armature x 2 + micro planar driver x 1 + bone conduction x 1’. This includes an 8mm DLC flexible surround dynamic driver, delivering robust and detailed bass. Paired with two large-volume balanced armature drivers for the midrange and a planar magnetic driver.

Custom Coil Bone Conduction Technology

SuperMix 5 incorporates a custom coil bone conduction driver. This converts electrical audio signals into mechanical vibrations, which are transmitted directly to the inner ear via bony structures such as the skull. Compared to conventional “air conduction”.

Scientific Tuning and Independent Acoustics

Through precision-engineered RC four-way crossover circuits, frequency ranges are rationally allocated across distinct drivers to maximise their individual characteristics. Employing resin 3D printing technology, each driver is fitted with an independent filter duct designed to prevent interference.

High-purity OCC Silver-plated Litz Cable

Features Litz-structured single-crystal silver-plated copper conductors to ensure high-fidelity signal transmission, enhancing sound separation and transparency. Supports 0.78mm 2-pin detachable cable with interchangeable 3.5mm/4.4mm plugs.

Specification:

Driver Configuration: 1× Bone Conduction + 1× Dynamic Driver + 2× Balanced Armature + 1× Micro Planar Driver

Impedance: 19Ω ±15% (@1kHz)

Sensitivity: 120dB/Vrms (@1kHz)

Frequency Response: 8Hz–40kHz

Effective Frequency Response: 20Hz–20kHz

Connector: 0.78mm 2-Pin

Housing: High-Precision Resin 3D Printing

Cable Material: Litz High-Purity Silver-Plated Single-Crystal Copper

Plug Type: 3.5mm / 4.4mm Interchangeable Plugs

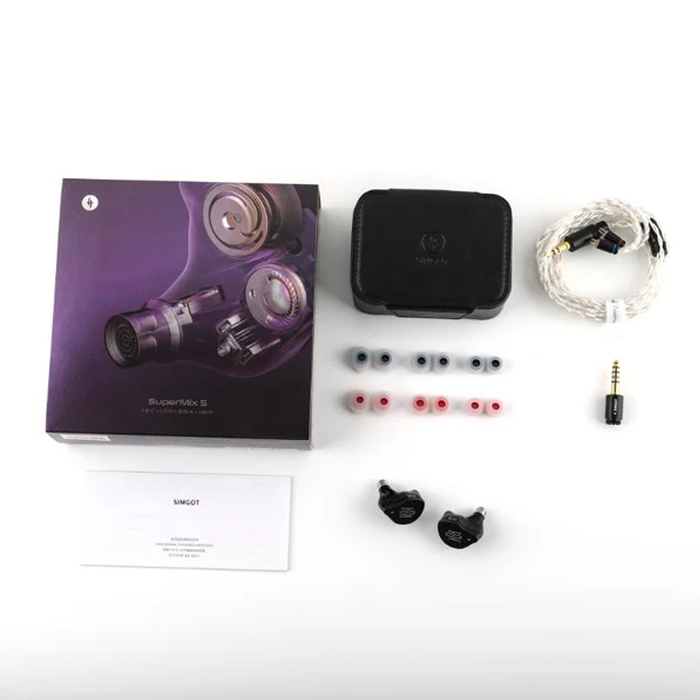

Inside the Box

1x Pair of SIMGOT SuperMix 5 In-Ear Monitors

1x Detachable Premium Cable

1x Carrying Case

6x Eartips

1x 3.5mm Adapter

1x 4.4mm Adapter
