SIMGOT SuperMix 4

Innovative Four-Driver Hybrid Configuration

The SuperMix 4 features a luxurious configuration of four different driver types: one dynamic driver (DD), one balanced armature (BA), one planar magnetic driver, and one piezoelectric (PZT) transducer. The dynamic driver utilizes a 10mm high-polymer diaphragm to deliver powerful, detailed low frequencies, while the BA, planar, and PZT drivers each contribute to a seamless, unified sound signature, providing an enchanting auditory experience.

High-Performance Low-Frequency Dynamic Driver

Specially developed for the SuperMix 4, the 10mm dynamic driver boasts a high-elastic suspension system and long-stroke design, combined with a custom high-polymer nano-diaphragm. Through extensive simulation and experimentation, a powerful magnetic circuit system was created.

Superior Mid-Frequency Balanced Armature Driver

The large balanced armature driver in the SuperMix 4 stands out for its full-range response and natural tonal quality. Unlike smaller BA drivers that might produce less dense or artificial-sounding vocals.

High-Frequency Planar Magnetic and PZT Drivers

The micro planar magnetic driver in the SuperMix 4 covers high frequencies with low distortion and wide bandwidth, offering rich detail and natural tonal quality. Additionally, the PZT piezoelectric transducer, with its multi-layer ceramic coating and copper substrate, extends the high and ultra-high frequencies, reducing mechanical noise and enhancing airiness and resolution, providing a refined and intricate sound.

Precision Tuning and Advanced Acoustic Design

SuperMix 4 employs advanced tuning techniques, combining independent sound paths with an RC four-way crossover. This design minimizes phase inconsistencies and distortion, ensuring smooth and continuous frequency response. Using 3D-printed resin housings and CNC-machined metal parts.

Elegant Design and High-Quality Cable

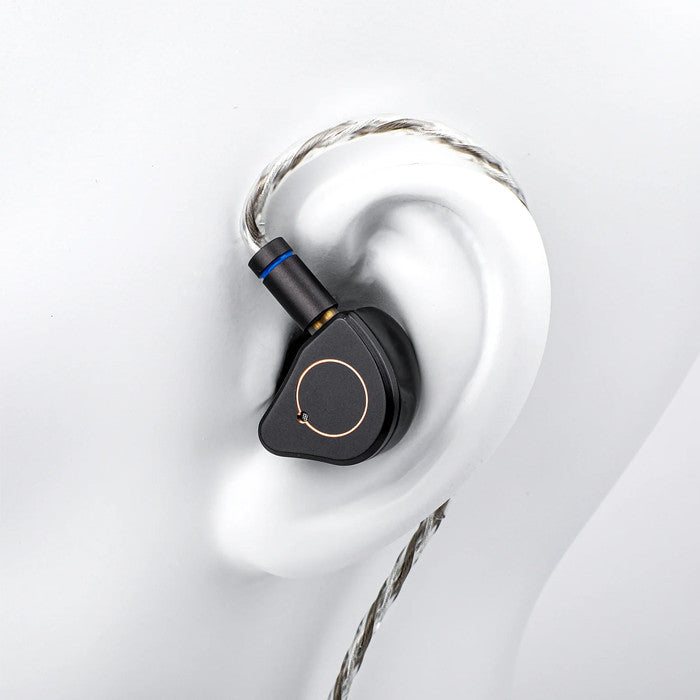

The SuperMix 4 combines a sleek, black translucent resin shell with a matte metal faceplate for both aesthetic and acoustic benefits. Its ergonomic design, based on extensive 3D ear data, ensures a comfortable and secure fit. It includes a high-quality, detachable 0.78mm 2-pin oxygen-free copper silver-plated cable, enhancing sound clarity and separation.

Specification:

• Product Name: SuperMix 4
• Brand: SIMGOT
• Driver Configuration: 1 DD +1 BA +1 Planar + 1 PZT
• Impedance: 7.2Ω±15% (@1kHz)
• Sensitivity: 120dB/Vrms (@1kHz)
• Frequency Range: 8Hz-40kHz
• Effective Frequency Response: 20Hz-20kHz
• Connector: 0.78mm 2-pin
• Shell Craftsmanship: High-Precision Resin 3D Printing
• Cable Material: Litz Structure High-Purity Oxygen-Free Copper Silver-Plated Wire
• Plug: 3.5mm Unbalanced Plug
