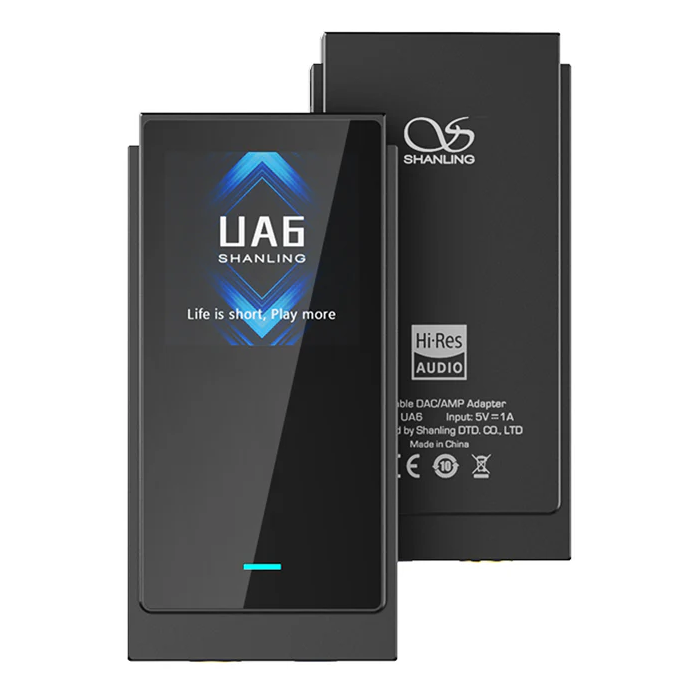

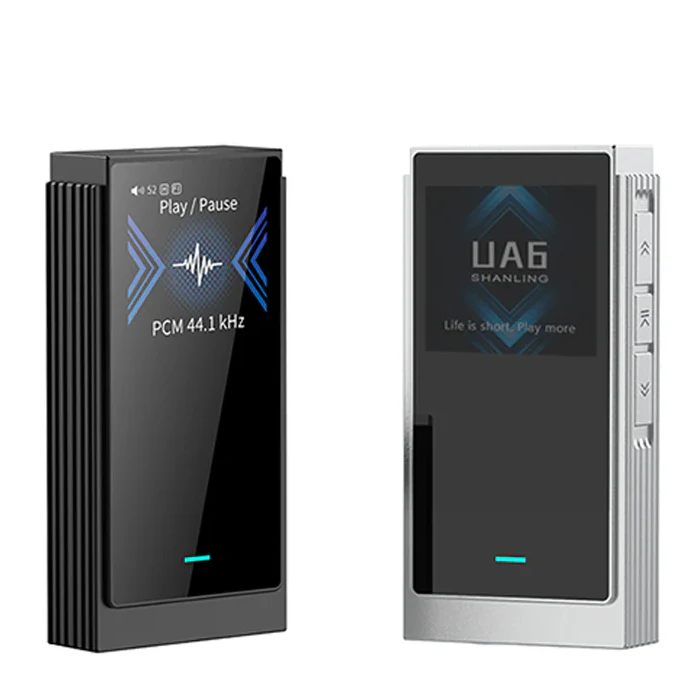

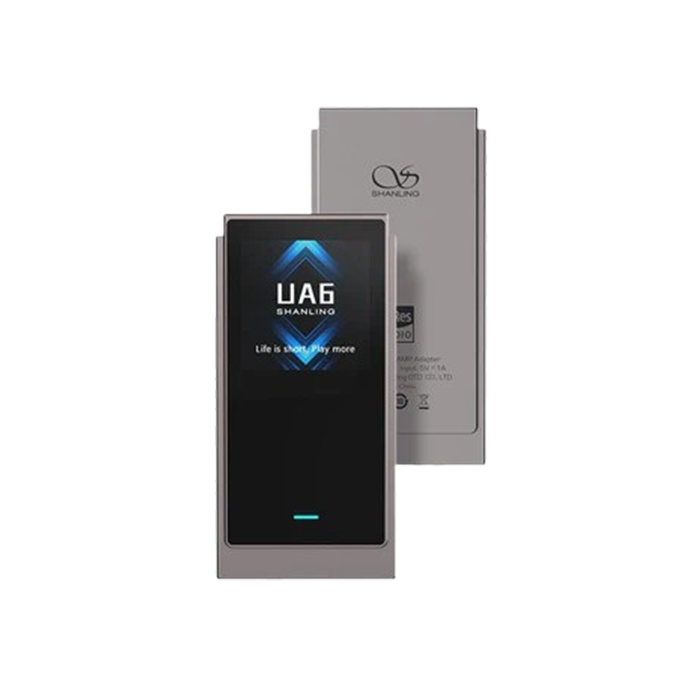

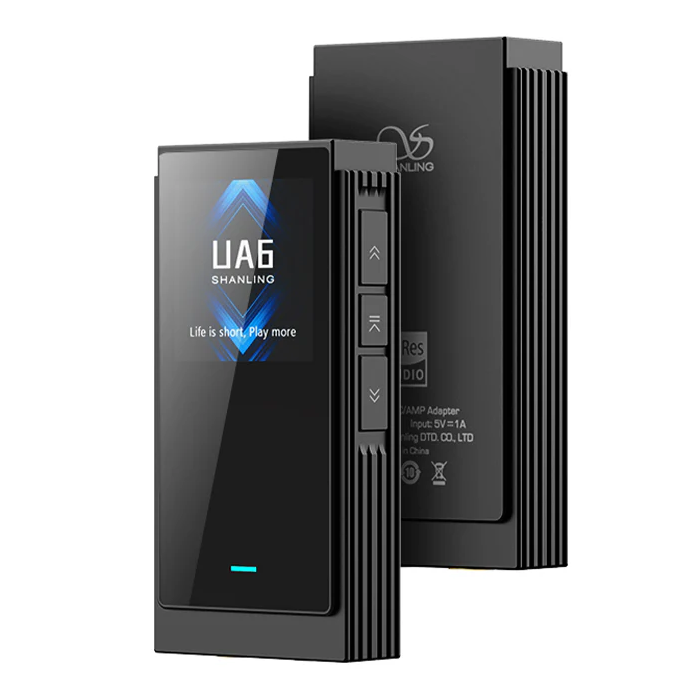

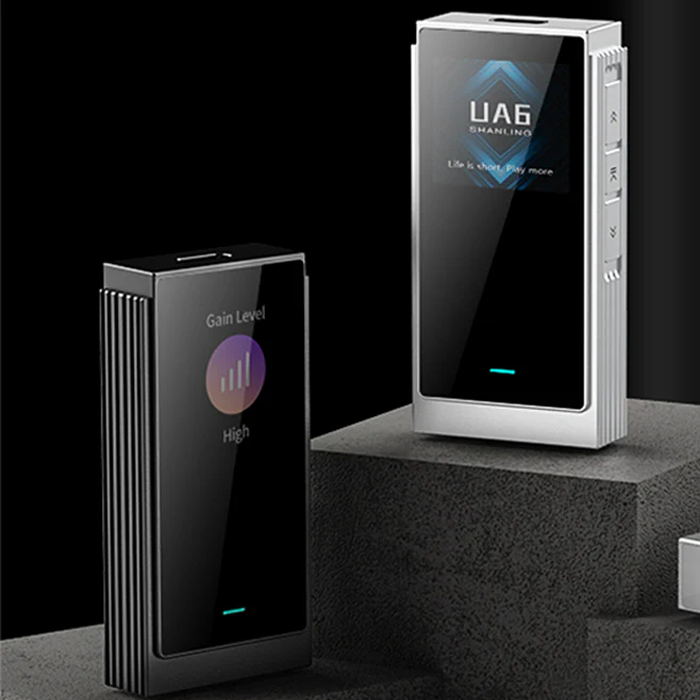

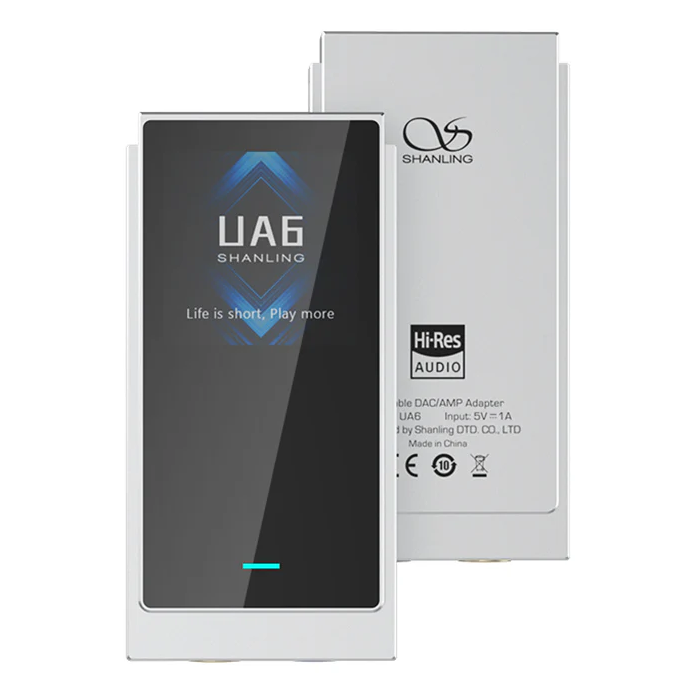

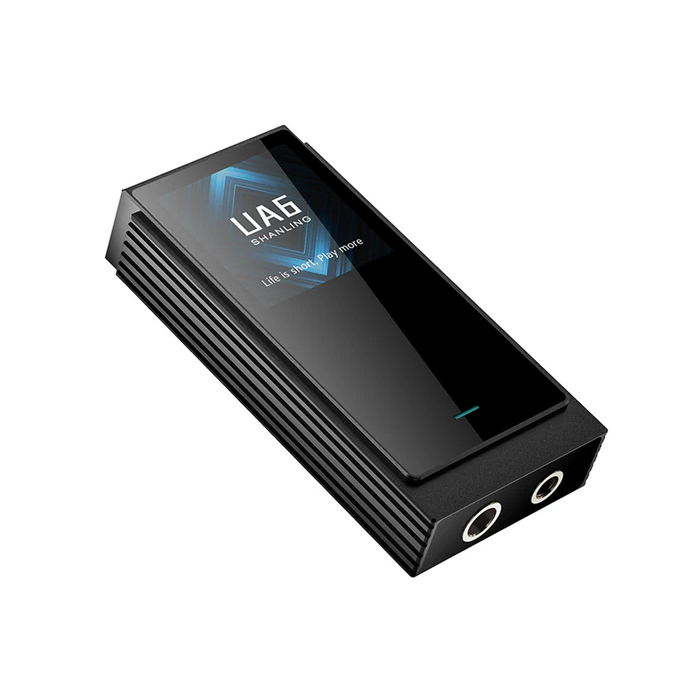

Shanling UA6

Four-Core Powerhouse: Elevating Audio Performance

The UA6 is powered by four CS43131 chips, forming an advanced acoustic matrix that delivers powerful current output and supports 768kHz/32bit PCM and DSD512 hardware decoding.

Hybrid Power with Intelligent Battery Management

The UA6 features a 220mAh lithium battery with Hybrid Power Supply System 2.0, resolving unstable phone power issues. Its optimized battery management ensures cleaner signal output and better control.

Switch Compatibility for Immersive Gaming

Hold the UA6 multifunction button while plugging it into the Switch, and once the screen displays "UAC1.0", the UA6 instantly transforms into an external DAC amp for your Switch.

Personalized Sound Experience through App Customization

The UA6, via the official Eddict Player app (currently Android only), allows for fine volume adjustments, 5 filter options, dual DAC/four DAC modes, high/low gain, and channel balance settings.

Note: Currently only supports Android devices. The next/previous track function may not work on some phones.

Vibrant LED Indicators for Clear Monitoring

The UA6 supports up to 768kHz/32bit, and its LED indicator changes color based on the current sampling rate, making it easy to see at a glance.

Blue: 32/44.1/48kHz; Yellow: 128/176.4/192kHz
Green: 64/88.2/96kHz; Purple: 352/384/705/768kHz
White: DSD64/DSD128/DSD256/DSD512; Red: 44.1/48kHz (UAC 1.0)

Specification:

Weight: About 35g
Size: 68 x 33.5 x 13.6 mm
Supported Specifications: 768kHz/32bit and DSD512
Gain Compensation: High, Low

3.5mm PO Output

Output Power: Low Gain: 1V @ 32Ω (31mW @ 32Ω); High Gain: 1.9V @ 32Ω (112mW @ 32Ω)
Dynamic Range: 128dB @ 32Ω (A-Weighted High Gain)
Channel Separation: 68dB @ 32Ω (A-Weighted High Gain)

4.4mm Balanced Output

Output Power: Low Gain: 1.8V @ 32Ω (101mW @ 32Ω); High Gain: 3.4V @ 32Ω (361mW @ 32Ω)
Dynamic Range: 133dB @ 32Ω (A-Weighted High Gain)
Channel Separation: 129dB @ 32Ω (A-Weighted High Gain)
