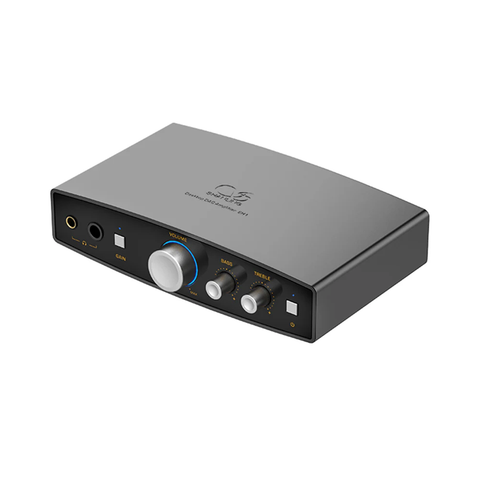

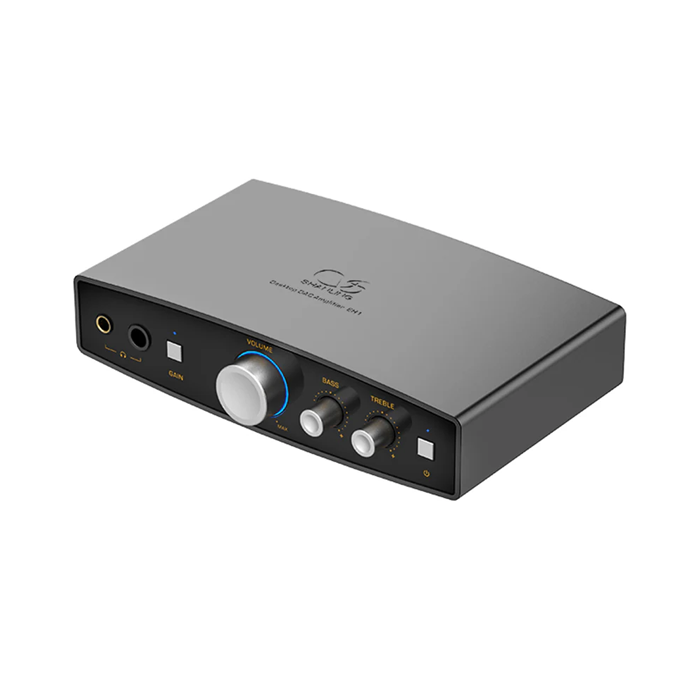

Shanling EH1

New Stylish Visuals

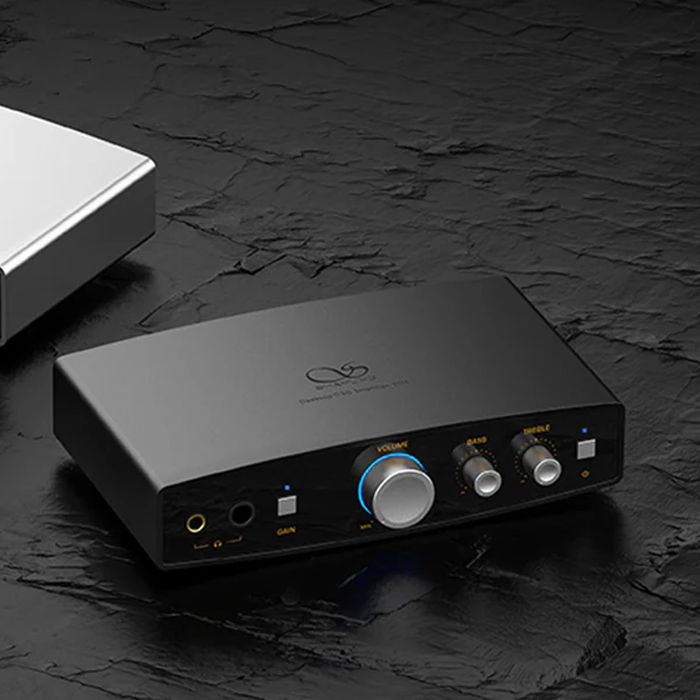

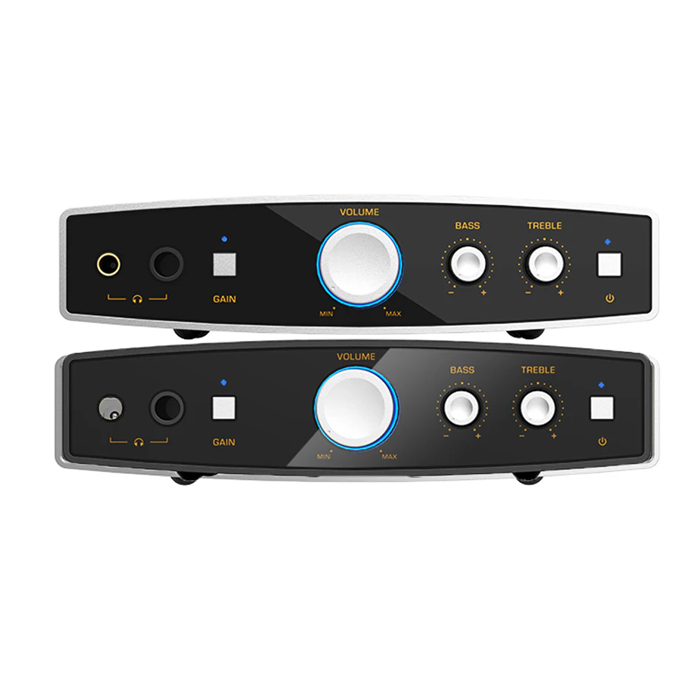

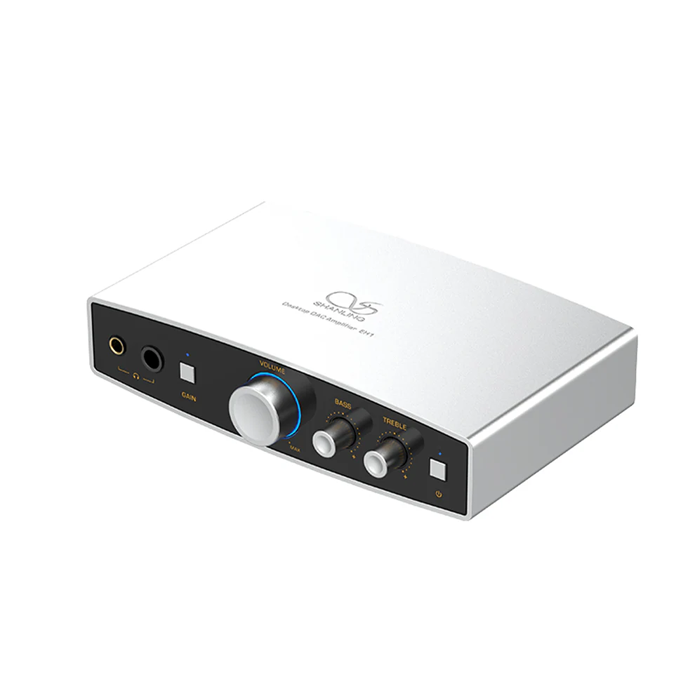

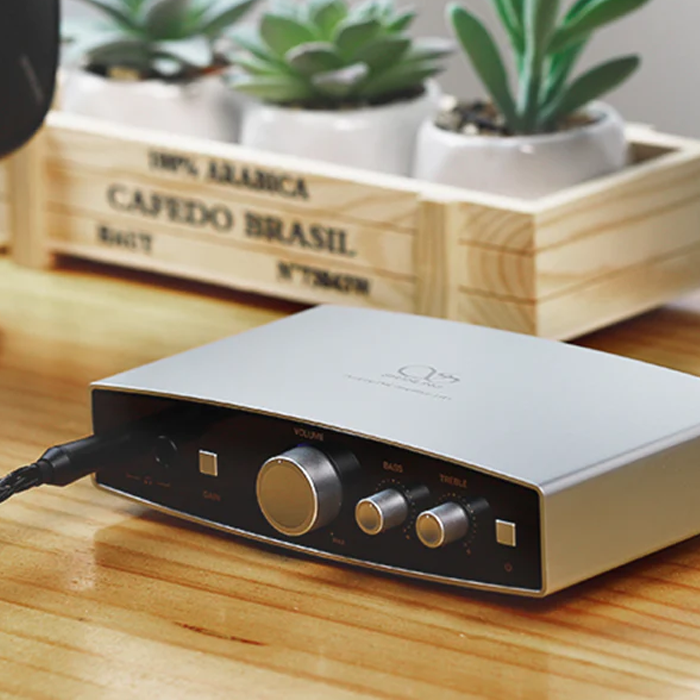

EH1 is the first model to feature our new curved design, with a sleek aluminium body and convenient buttons and dials, making for an ideal compact device for any desk setup. Available in silver or black anodizing, with a dual-color scheme mixing in silver and black elements.

Hi-Res USB DAC Advanced USB Input

High-Performance USB chipset assures problem-free compatibility with all major computer systems, while providing smooth support for High Resolution PCM and DSD audio files. Hi-Res: PCM 32 bit / 768 kHz; Native: DSD512

6.35mm Single-Ended & 4.4mm Balanced Output For Versatile Headphone Amplifier

From demanding full-size planars to sensitive earphones, EH1 was conceived as a convenient companion to all types of headphones Two gain levels, low output impedance and accurate volume control, ready for ideal headphone matching.

Output Power: 6.35mm:399mW@32 Ohm & Balanced 1015mW@32 Ohm

Power Input Options USB-C or DC Power

Pick between the simplicity of USB-C or the stability of DC input, depending on the exact use case and the source device.

Coaxial Digital Output USB-to-SPDIF Converter

Offering standalone digital output, for added connectivity to other types of Hi-Fi devices, from vintage DACS, over Hi-Fi Receivers, to active speakers.

Specification

Dimensions: 156 x 90 x 36,5 mm
Weight: 392.5 g
Hi-Res Support: 768 kHz/32 bit, DSD 512
DAC Chip: CS43198 DAC

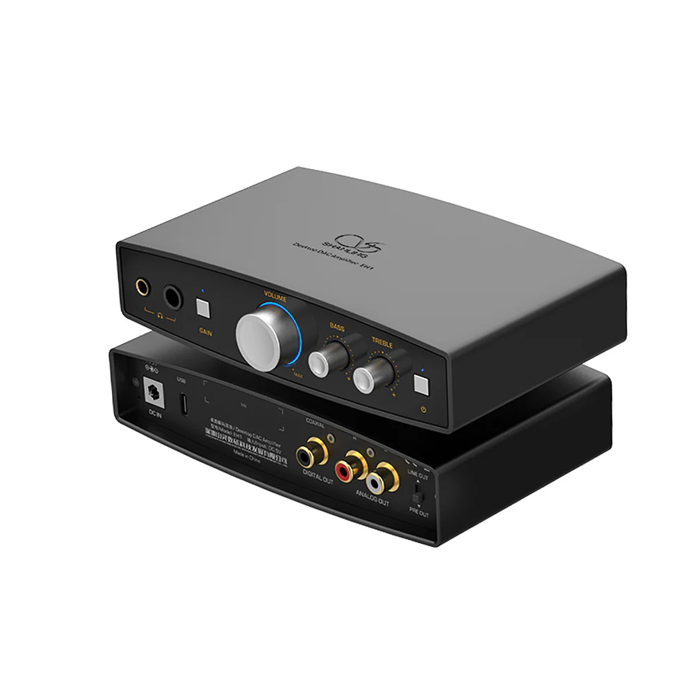

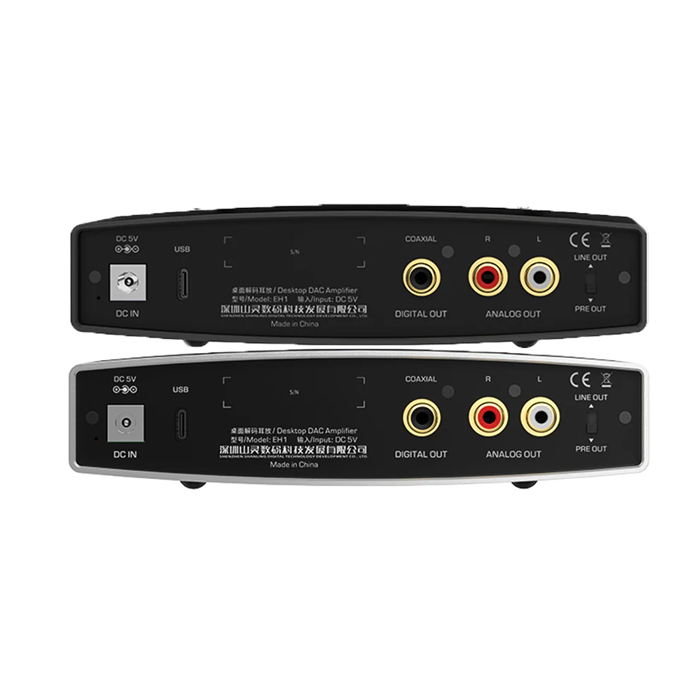

Inputs/Outputs:

USB DAC Input: USB-C
Digital Output: RCA Coaxial
Headphone Output: 4.4mm / 6.35mm
Analog Output: RCA (Line Out / Pre-Out)

6.35mm Single-Ended Headphone Out:

Output Power:

Low Gain: 63mW@32 Ohm
High Gain: 250mW@32 Ohm
High Gain (DC Power): 399mW@32Ohm Frequency Response: 20Hz-40kHz (-1.5dB)

4.4mm Balanced Headphone Out:

Output Power:

Low Gain: 250mW@32Ohm
High Gain: 980mW@32Ohm
High Gain (DC Power): 1015mW@32Ohm Frequency Response: 20Hz-40kHz (-0.5dB)
