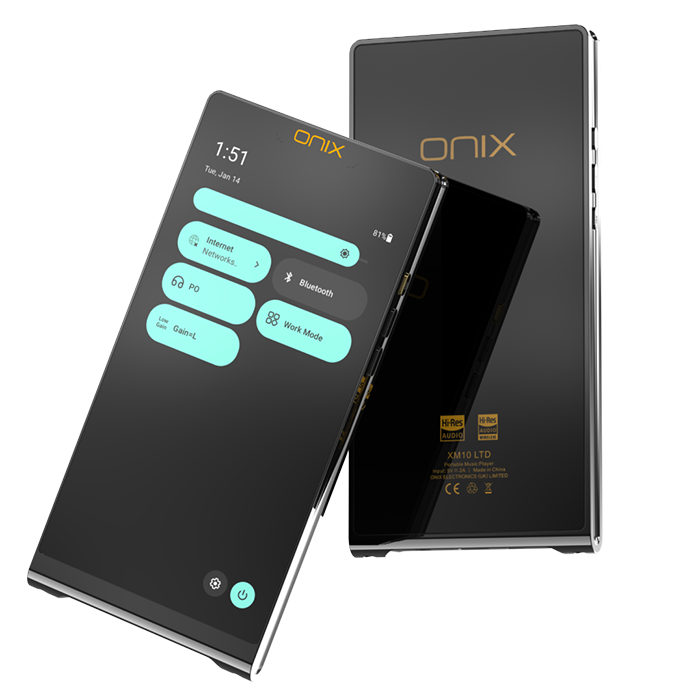

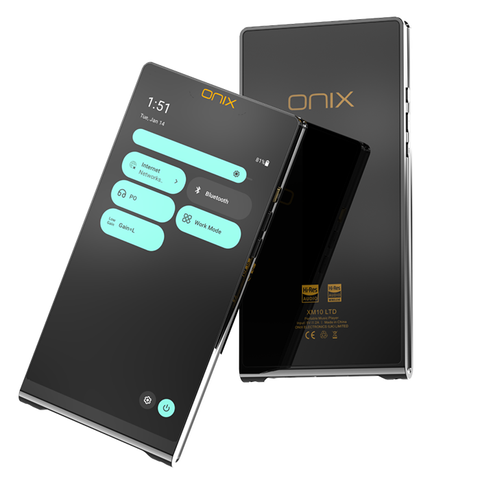

ONIX Waltz XM10 Ltd

The Miracle Beginning

Original ONIX XM10 was included in the High-End Miracle setup, acting as the streaming platform for the Hi-Fi stack, while being a decently sounding portable player on its own.

Pushing Design Limits of Hi-Fi Players

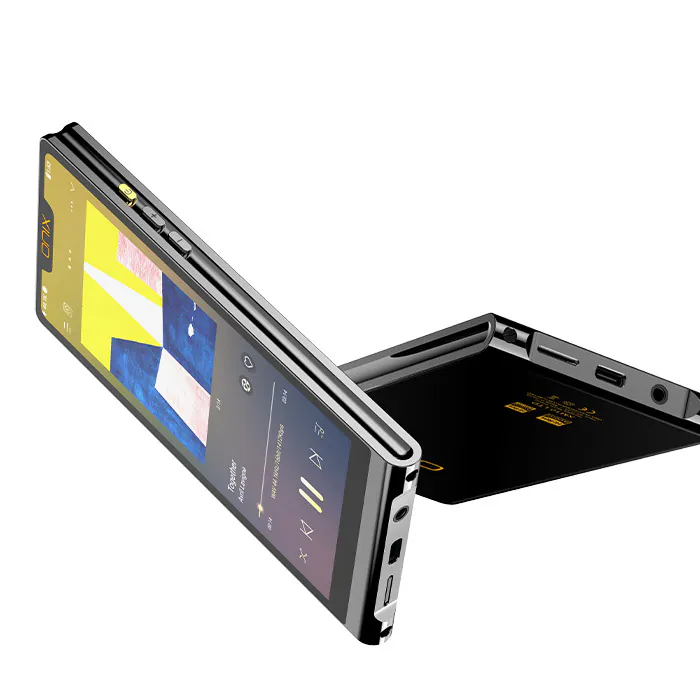

Optimized for true portability, ONIX Waltz was thinned down to just 11.5mm, putting it closer to standard smartphones and avoiding the unpractical dimensions of bulky Hi-Fi Players. At the same time, its build was further enhanced by utilizing stainless steel construction

Serious Audio Performance

ONIX Waltz takes inspiration from ONIX Mystic XP1, creating a naturally sounding player based around AKM’s flagship DAC system, AK4499EX DAC and AK4191 ΔΣ modulator. Supported by the in-house developed “Brighton” I/V conversion circuit and FPGA technology.

While ONIX Waltz features only a 3.5mm socket, Balanced output can be achieved with the provided 5-pin 3.5mm to 4.4mm Balanced adapter.

Specification:

Dimensions: 158 x 77 x 11.5 mm
Weight: 338g
Display: 6-Inch 2160 x 1080
CPU: Qualcomm Snapdragon 665
System: Open Android 13
Memory: 6GB RAM + 128 GB ROM + MicroSD Card
Bluetooth Connectivity: Two-Way Bluetooth 5.0
Bluetooth Codec Support: Transmitter: LDAC, aptX HD, aptX, AAC, SBC
Receiver: LDAC, SBC
Wi-Fi Connectivity: 2.4G/5G, DLNA, AirPlay
Hi-Res File Support: PCM 768kHz / 32bit, DSD1024

USB DAC Mode:
Supporting PCM 384kHz / 32bit, DSD256

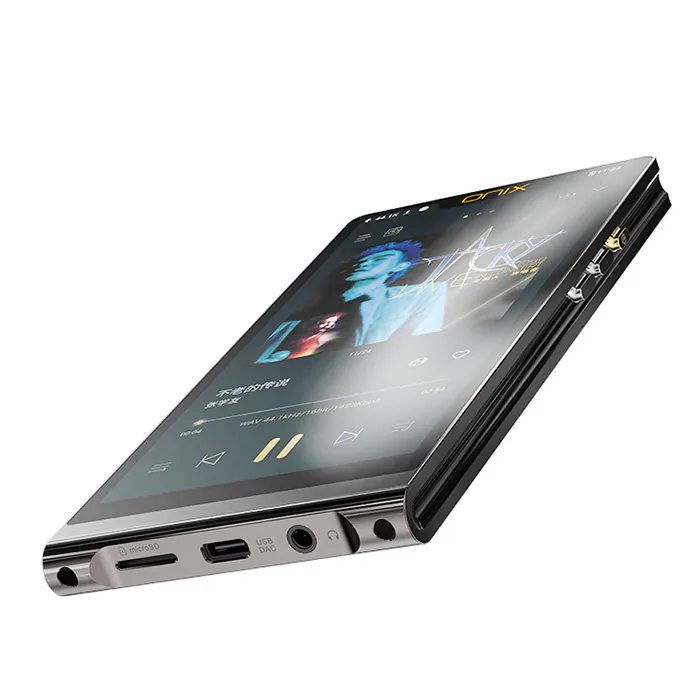

Headphone Output: Combined 3.5mm
Single-ended Output, Balanced 4.4mm with Adapter
Battery: 4300 mAh, USB-C 18W QC & PD Charging

3.5mm Single-Ended Output

Output Power Low gain: 1.3V@32Ω (19mW@32Ω)
Output Power High gain: 2.7@32Ω (227mW@32Ω); 2.7V@300Ω (24mW@300Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)

4.4mm Balanced Output
With provided 3.5mm to 4.4mm Adapter (buy separate)

Output Power Low gain:  2.7V@32Ω (227mW@32Ω)
Output Power High gain: 5.3V@32Ω (877mW@32Ω); 5.3V@300Ω (93mW@300Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
