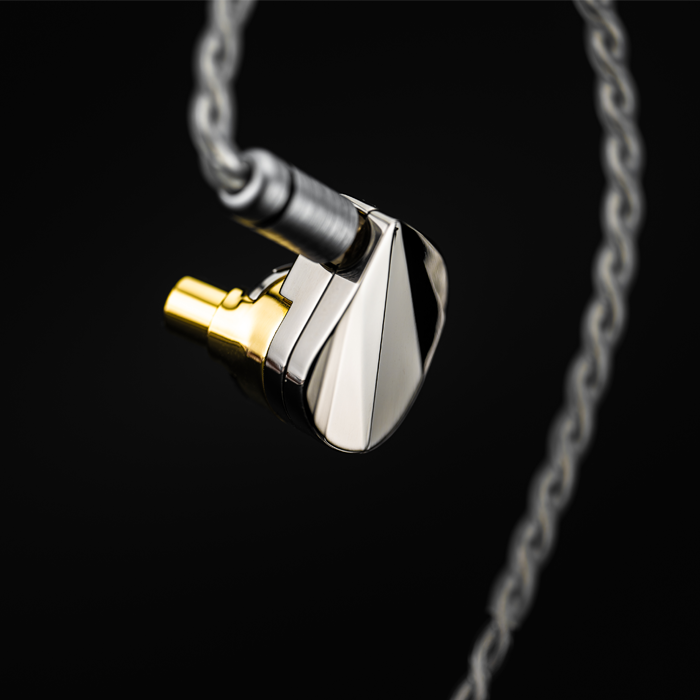

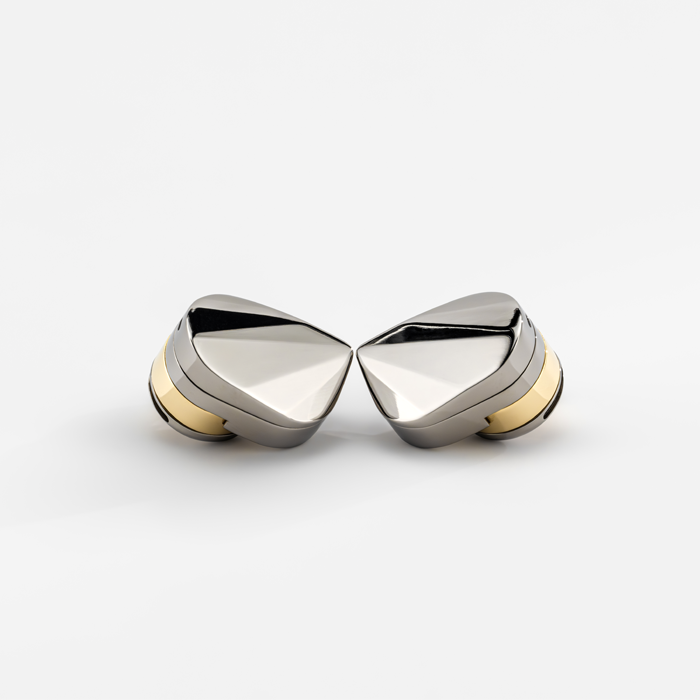

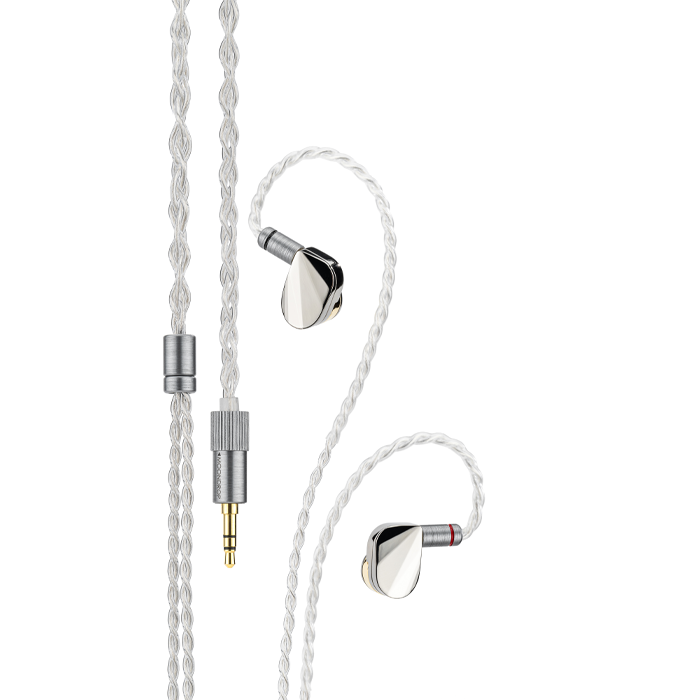

11mm Patented Dynamic Driver In Ear Monitor Earphone
Ini perkiraan kasar. Itu dapat berubah tanpa pemberitahuan sebelumnya.
Couldn't load pickup availability
Legendary 11mm Patented Dynamic Driver
The legendary patented 11mm dynamic driver has consistently delivered TO-level performance in dynamic drivers. This is achieved through the use of ultra-high-efficiency magnetic conductive materials and a scientifically designed large-volume magnetic circuit structure that outperforms typical dual-magnet external magnetic circuits. A copper alloy independent support structure increases the stroke and minimizes disturbances in the magnetic circuit.
TAC Diamond-coated Dome Composite Diaphragm
Based on LCP dome technology, a high-rigidity artificial diamond layer is applied through a deposition process. This diamond layer, which features an SP3 bond significantly stronger than that of DLC material, enhances the rigidity of the dome. As a result, the material exhibits improved internal damping, leading to better treble performance with smoother extension and finer details compared to its predecessor.
Closely aligns with DF-HRTF
The Illustrious maintains a strictly neutral tuning profile, faithfully adhering to the Diffuse-Field HRTF (Head-Related Transfer Function) standard. With near-zero bass coloration and imperceptible high-frequency resonance artifacts, it achieves reference-class signal reproduction accuracy. This engineering precision establishes it as both an indispensable tool for critical monitoring in professional audio analysis, and a discerning choice for audiophiles seeking uncompromising playback fidelity with high-resolution recordings.
Specifications
Product Name: MOONDROP-illustrious 11mm Patented DD IEM
Driver: 11mm Patented Dynamic Driver
Diaphragm: TAC Diamond-Coated Dome Composite Diaphragm
Impedance: 25 Ohm±15% (@1kHz)
Sensitivity: 124dB/Vrms (@1kHz)
THD:THD 0.03% (@1kHz, 94dB)
Frequency Response: 10-50kHz (IEC61094, Free Field)
Effective Frequency Response: 20Hz-20kHz (IEC60318-4,-3dB)

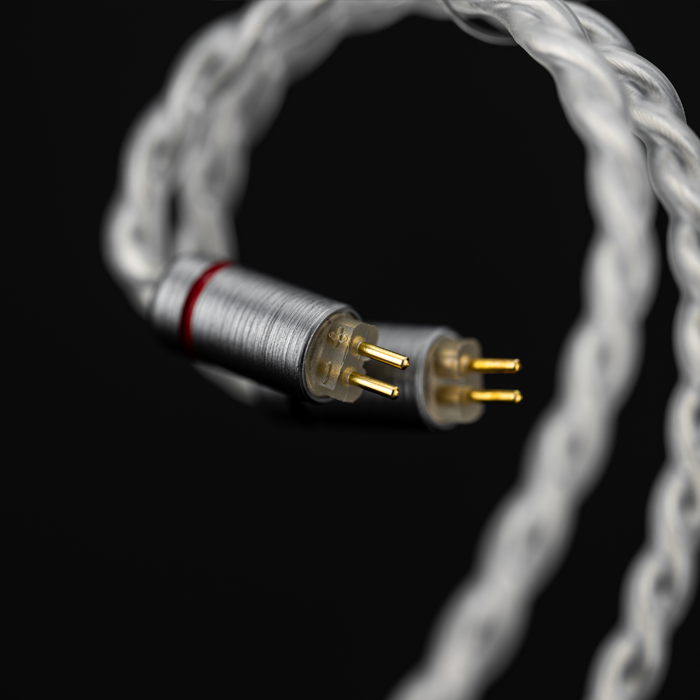

Earphone Jack:0.78-2pin
Cable Plug: 3.5mm Single-ended & 4.4mm Balanced-ended
