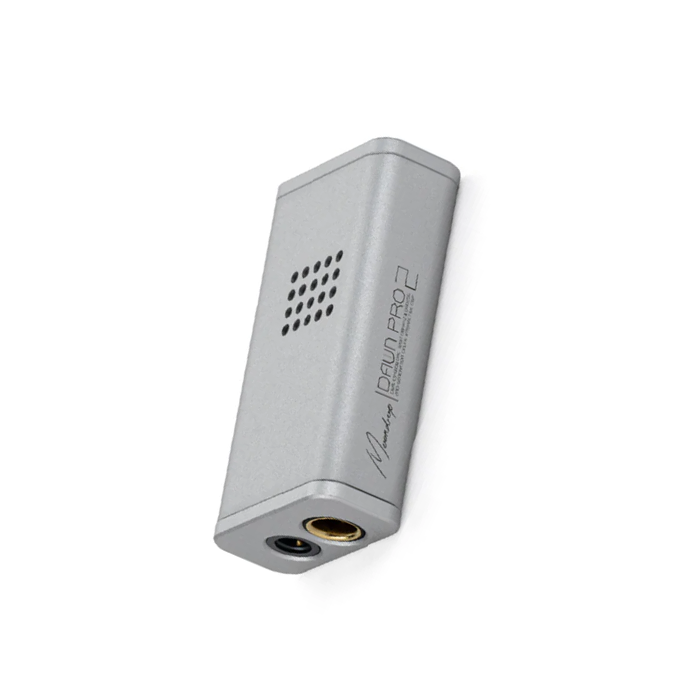

Moondrop Dawn Pro 2

Compatible with Computers Smartphones and Laptops - Supports Lossless Quality and Master Audio Source

The Dawn Pro 2 features a brand-new professional high-erformance USB digital audio chip. It is compatible with most personal computers, smartphones, and laptops, and can decode PCM audio from 16-Bit / 44.1kHz to 32-Bit/ 384kHz, and DSD256.

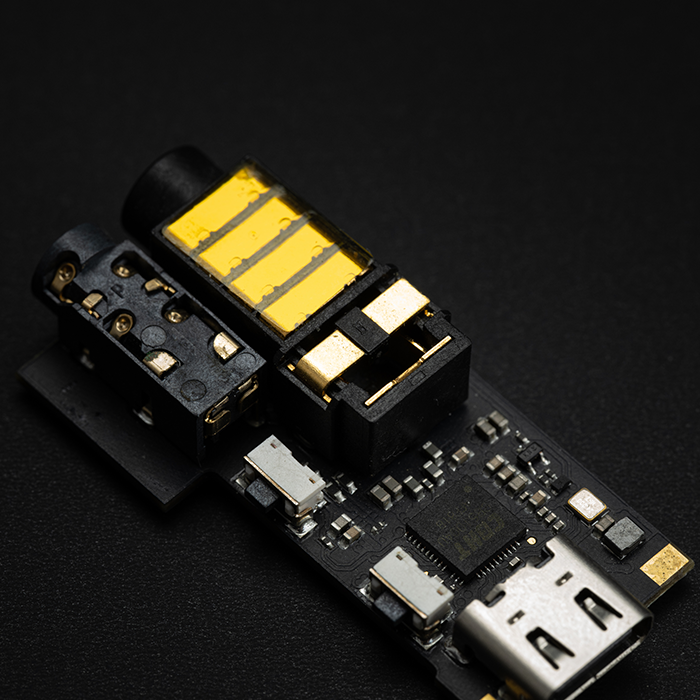

Dual Cirrus Logic Flagship CS43198 DAC chips Three Independent LDO Power Chips

The Dawn Pro 2 employs dual flagship CS43198 decoding chips from Cirrus Logic and utilizes three LDOs to provide separate power to the decoding and digital chips. With an independent crystal oscillator, this design creates a high-efficiency.

The Second Generation Online Interactive DSP Expand the Possibility of Headphone

Through the recently updated MOONDROP APP*, users can customize and debug the parameterized equalizer for Dawn Pro 2 using a new professional tuning interface that is more precise and user-friendly. This interface allows adjustments to parameters such as Filter Type, Frequency Point, Gain, and Q Value.

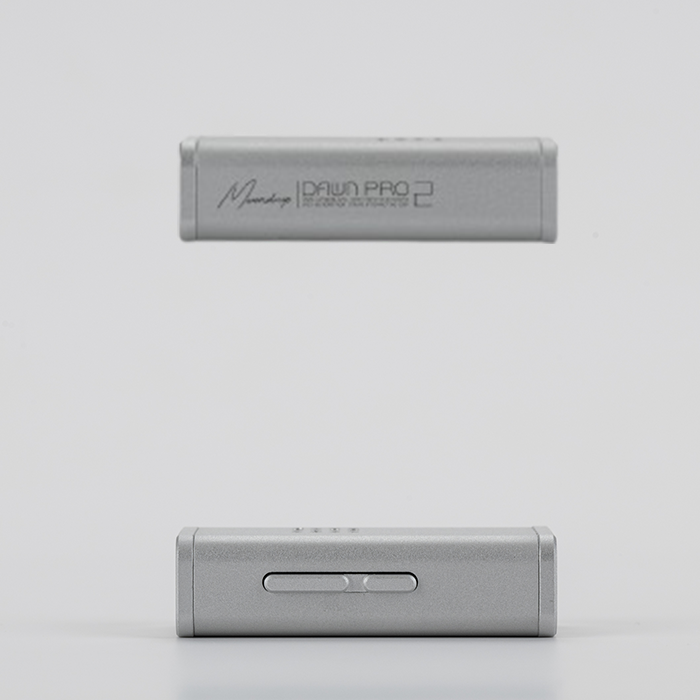

Enabling / Disabling the Tuning Configuration

You can manually enable or disable the tuning configuration on the Dawn Pro 2.

To achieve this, press and hold the volume up (+) and volume down (-) buttons simultaneously for 2s.

• Press and hold the volume up (+) and volume down (-) buttons simultaneously for 2s to enable or disable the tuning configuration

• When the tuning configuration is enabled, the indicator light will turn orange.

• When the tuning configuration is disabled, the indicator light will turn red.

• After reconnecting with the Dawn Pro 2, the tuning configuration will be disabled by default and must be turned on manually.

Specification:

Product Name :DAWN PRO2 high-performance portable DAC/AMP

Earphone Jack: 3.5mm single-ended / 4.4mm balanced jack

Dynamic Range(A-wt): 132dB@1kHz

THD+N: 0.00014%@1kHz

Output Magnitude: 4.1Vrms@0dBFS

Output Power: 124+124mW@16Ω THD+N<1%
