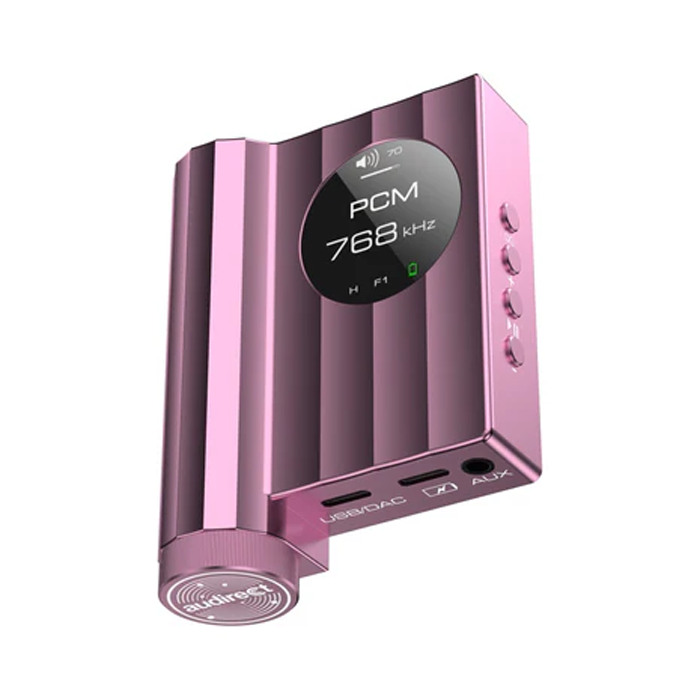

Audirect

Audirect Team1 / Team 1 Magsafe Version

ES9281AC PRO Portable USB DAC Amplifier

A five-op-amp, three-stage amplifier circuit. The main amplification stage of this circuit consists of a dual-channel LME49860MAX, while the secondary amplification stages are comprised of 4 high-current RT6863C op-amps. Seamless...

IDR 5.039.000; IDR 5.039.000
Unit price: per

Warna: Grey Grey Pink

Product variants

Quantity:

Subtotal: IDR 5.039.000

10 customers are viewing this product

1 Tahun Garansi

Audirect Team1 / Team 1 Magsafe Version

IDR 5.039.000

Choose Options

Quantity:

Audirect Team1 / Team 1 Magsafe Version

IDR 5.039.000

Warna: Grey Grey Pink

Product variants

Description

Description

A five-op-amp, three-stage amplifier circuit.

The main amplification stage of this circuit consists of a dual-channel LME49860MAX, while the secondary amplification stages are comprised of 4 high-current RT6863C op-amps.

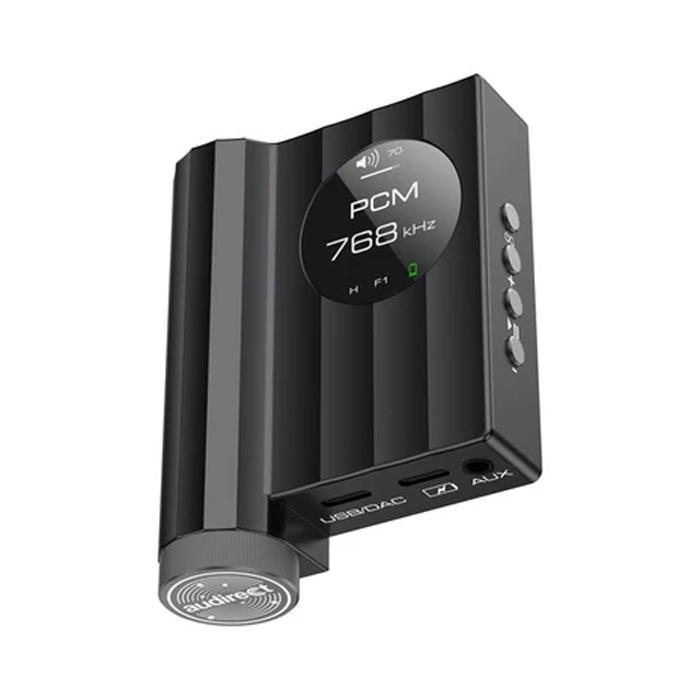

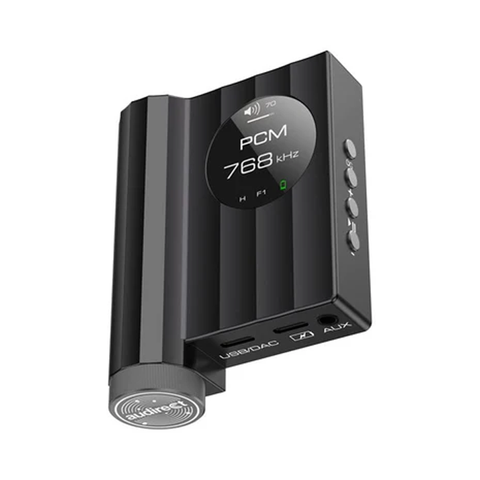

Seamless operation on a large, colorful screen.

Featuring a premium circular display for intuitive and comprehensive information, with easy-to-use functions.

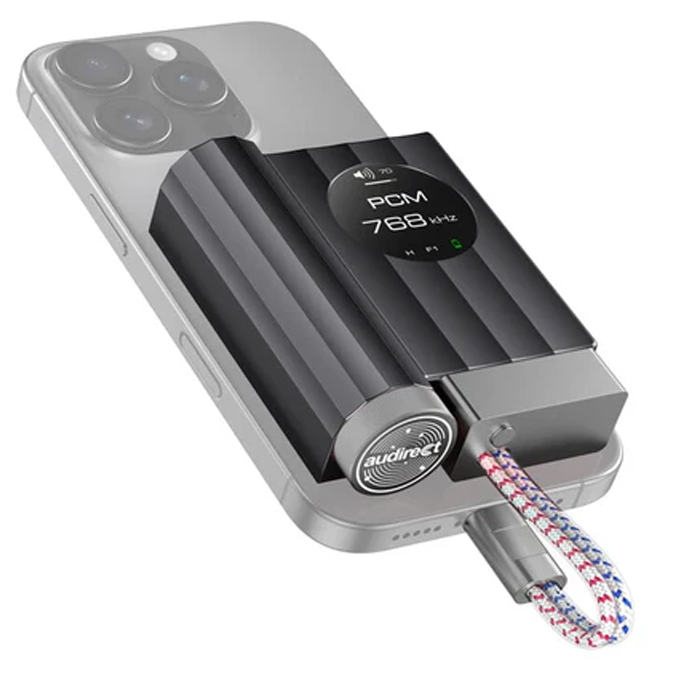

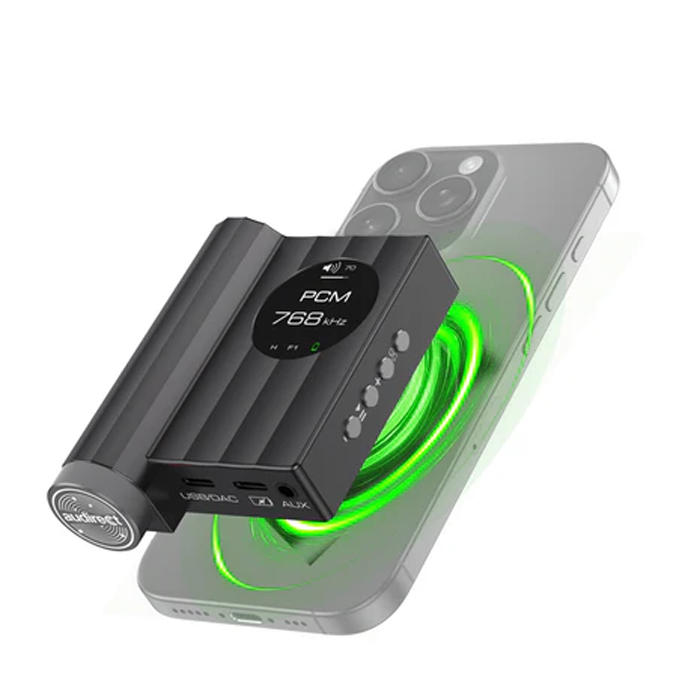

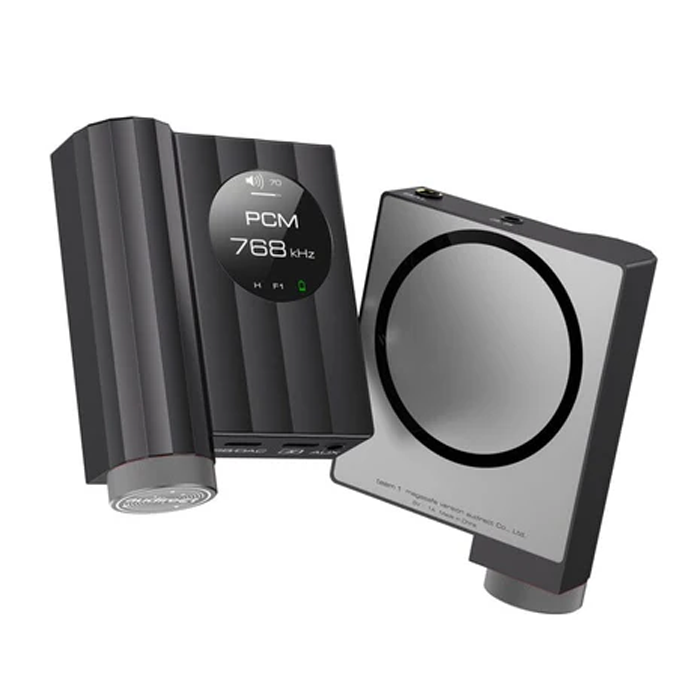

Magnetically secure and easy to carry.

A new form factor that's easy to hold with one hand, making it perfect for on-the-go use.

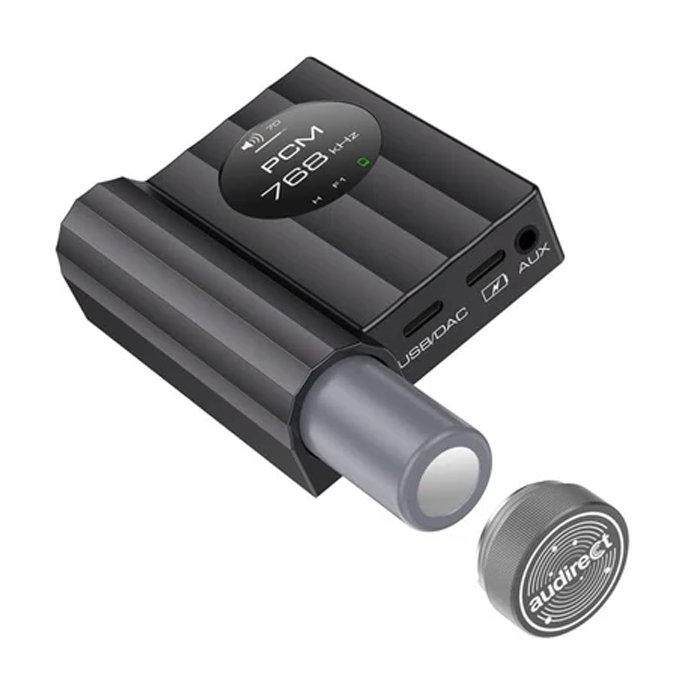

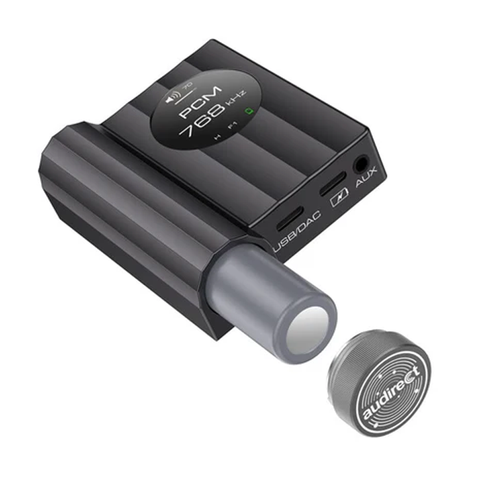

3500mAh high-capacity power battery

Only utilize the high-efficiency voltage range of the battery. (drawing only 1500mAh from a 3500mAh battery, ensuring the minimum voltage is above 3.75V). To deliver high-quality audio output, the power supply must be sufficient and highly efficient. High-quality audio output is contingent upon a sufficient and efficient power supply.

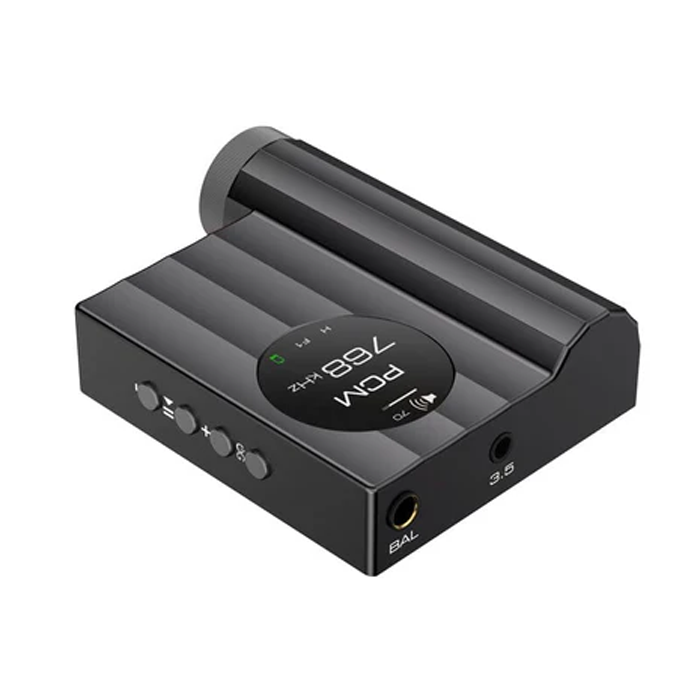

3.5mm and 4.4mm dual output interface

Offering both 3.5mm single-ended and 4.4mm balanced options. Enjoy a more immersive listening experience with our dual output design.

3.5mm Output power

>2 Vrms (16 Ohm) >3 Vrms (32 Ohm) >3 Vrms (60 Ohm)

4.4m output power

>1.5 Vrms(16 Ohm) >2.3Vrms (32 Ohm) >6 Vrms (60 Ohm)

Basic specifications

Product Model: TEAM1 Magnetic Mini Desktop Hi-Res Audio DAC
DAC chip: ES9281AC PRO
Op-amp: LME49860MAX+RT6863C/TR*4(TR high-current output stages)
Outputs: 3.5mm single-ended and 4.4mm balanced headphone jacks
Frequency response: 0.083dB @20Hz-40kHz
3.5mm output power:
>250mW(16 Ohm), >280mW(32 Ohm)
4.4mm output power:
>140mW(16 Ohm), >165mW(32 Ohm)
Signal-to-noise ratio: -118dB
Total harmonic distortion plus noise (THD+N): 0.0004%
Maximum sampling rate: 32-bit/768kHz
Supports DSD format up to DSD512
Weight: 140g
Battery capacity: 3500mAh
Dimensions: 80mm x 62mm x 23mm
