xDuoo TA-32

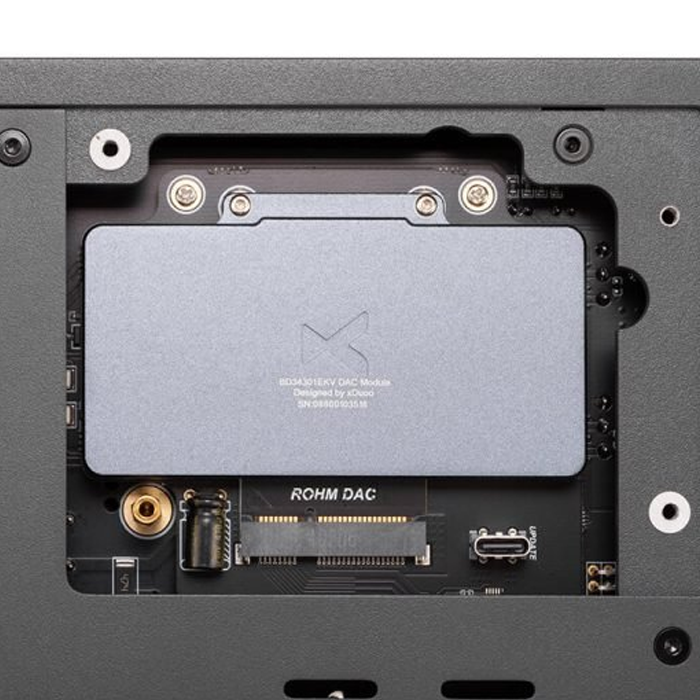

Swappable DAC card

With a replaceable DAC module, you can enjoy different DAC chips (available separately) without having to buy an entirely new DAC/Amp. Shipping with the ROHM BD34301, the TA-32 can also be used with the AK4499EX DAC Chip Accesories For XD05 Pro.

Seamless connectivity

The TA-32 accommodates a broad range of sources like laptops, CD players, streamers, and more. It has coaxial, optical, and Bluetooth inputs, along with a USB connection for digital audio up to PCM 768kHz and DSD512. It also supports MQA 8x decoding through USB.

3000mW output power

Delivering up to 3000mW at 32Ω, the TA-32 supports headphone impedances from 16Ω to 600Ω. This amount of power provides ample overhead, maintaining definition in the bass, midrange, and treble. Whether you’re driving open-back or closed-back cans.

5.1 Bluetooth decoding

Convenience and quality go hand-in-hand with Bluetooth 5.1. Paired with a Qualcomm QCC5125 receiver chip, the TA-32 supports SBC, AAC, aptX, aptX LL, aptX HD (24-bit/48kHz), and LDAC (up to 24-bit/96kHz).

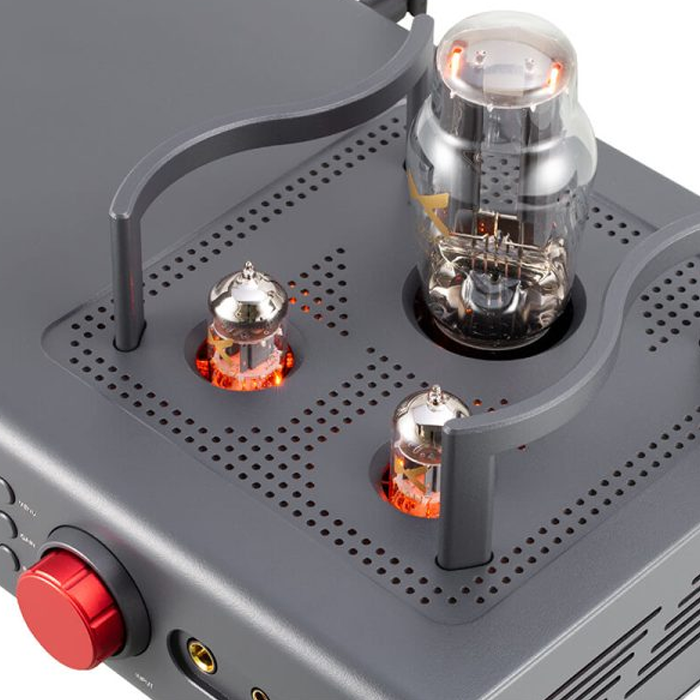

Tube preamp

The TA-32 can serve as a tube-driven preamplifier for your amplifier or speakers. Its matched pair of Ray Tubes 12AU7 CORE and 5U4G brings a touch of smoothness and warmth to your setup, which can be especially helpful if you find digital sources a bit clinical or bright.

Specification

Screen: 3.12-inch OLED
Power supply: AC 100–120V / 220–240V
Compatible OS: Linux, Windows, macOS, iOS, Android
USB in sampling rate support:
PCM: 16–32Bit / 44.1kHz–768kHz
DSD: DSD64–DSD512
MQA: 8x
Optical/Coaxial sampling rate support:
PCM: 16–24Bit / 44.1kHz–192kHz
DSD: DSD64 (DOP)
Bluetooth support formats: SBC, AAC, aptX, aptX LL, aptX HD, LDAC

6.5mm headphone output:
Output power: 2300mW (32Ω)
Frequency response: 20Hz–60kHz (±0.5dB)

4.4mm & XLR headphone outputs:
Output power: 3000mW (32Ω)
Frequency response: 20Hz–60kHz (±0.5dB)

Size: 12.2 x 9.4 x 6.7in (31 x 24 x 17cm)
Weight: 11.46lbs (5.2kg)
