xDuoo DA-100

Seamless Bluetooth Support

Can be connected to various Bluetooth playback devices, get rid of the shackles of wires, and even Bluetooth can output good sound quality. It provides seamless wireless Bluetooth connectivity with hi-res codec support such as LDAC, AptX HD, AptX LL, and many more.

Premium Audio Chipset

Using TI TPA3116 amplifier chip, excellent sound quality, the maximum output power can reach 50W per channel, easy to drive bookshelf speaker. It also adopts the high-performance ES9018K2M DAC chip and high-fidelity operational amplifier chip MAX97220, which can ensure high S/N and very low distortion with excellent performance parameters.

1.3 Inch OLED Display

Using OLED display, the Bluetooth connection status/coding format sampling rate/song name and other information can be displayed intuitively, so that you can know the working status at any time.

Compact Headphone Amplifier

With strong output power, it can easily drive any kind of headphones. Moreover, designed with size(19.6*12.1*4.8cm), it’s easy to carry everywhere for a real-time HiFi music experience.

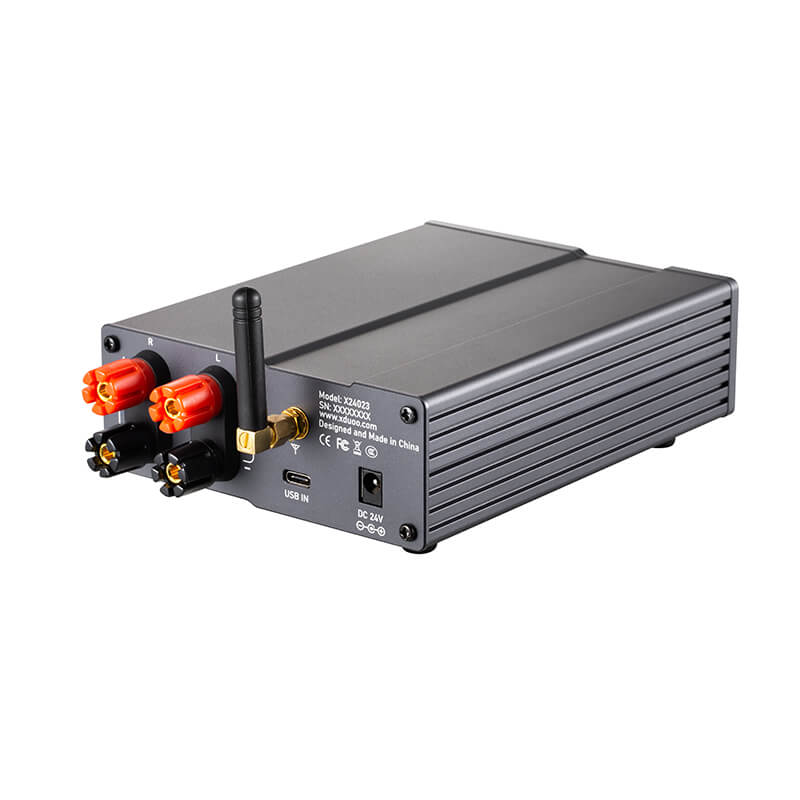

Aluminum shell Processed by CNC Technology

The shell is made of aluminum alloy, and uses a block of aluminum processed by CNC technology, which has excellent shielding characteristics.

Specification

• Power Supply : DC24V
• Bluetooth : 5.0
• USB Input : Up to 16 bit/48khz
• Output Power : 125mW(1khz/32Ω load)
• S/N : 110dB
• THD+N : 0.05% (1KHz)
• Suitable Headphone Impedance : 16Ω~300Ω
• Size : 19.6x12.1x4.8cm
