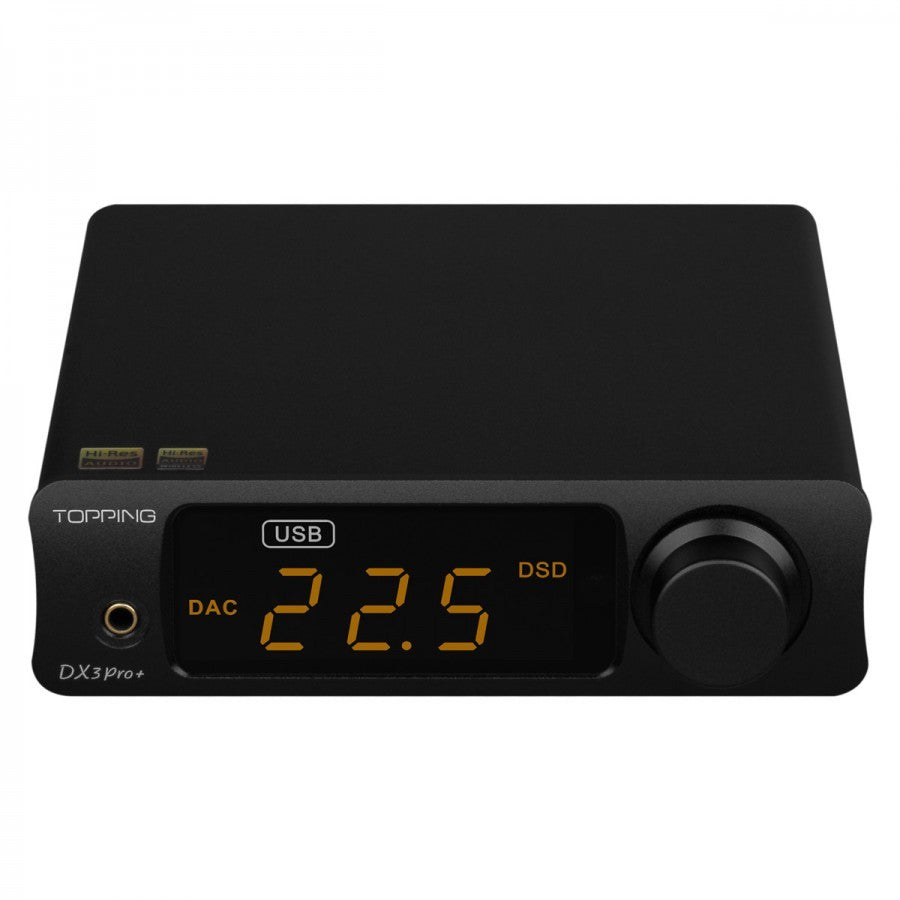

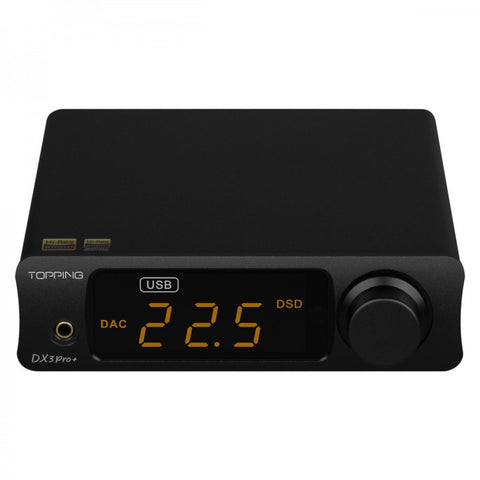

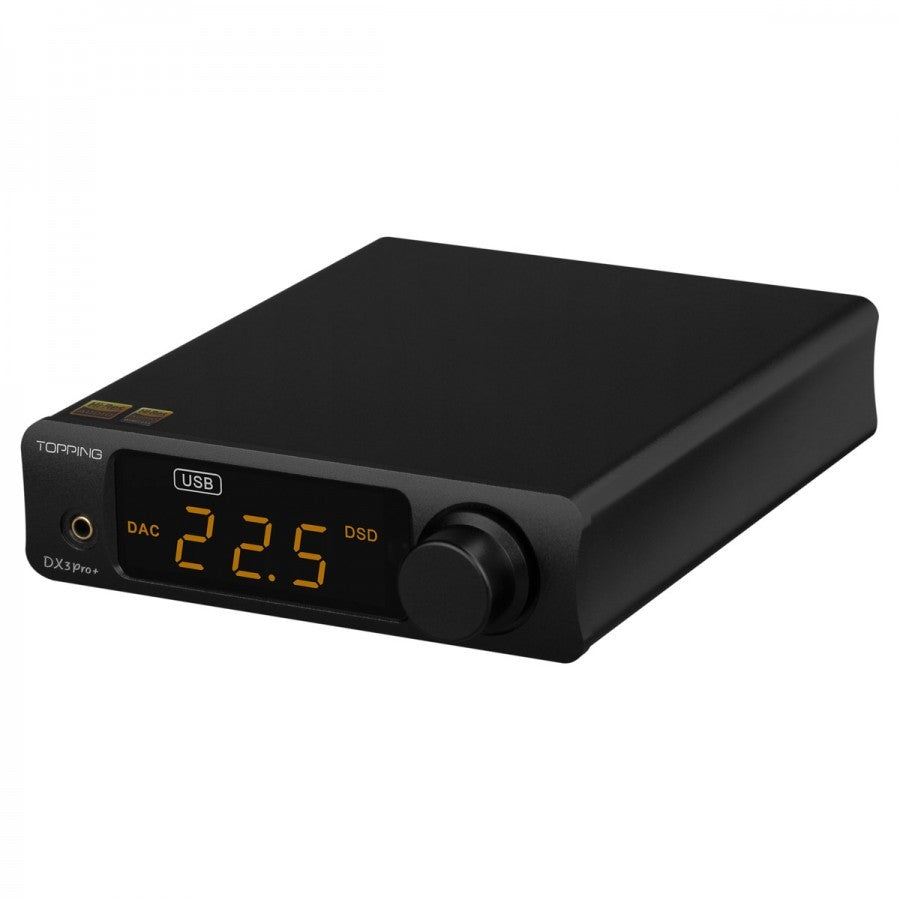

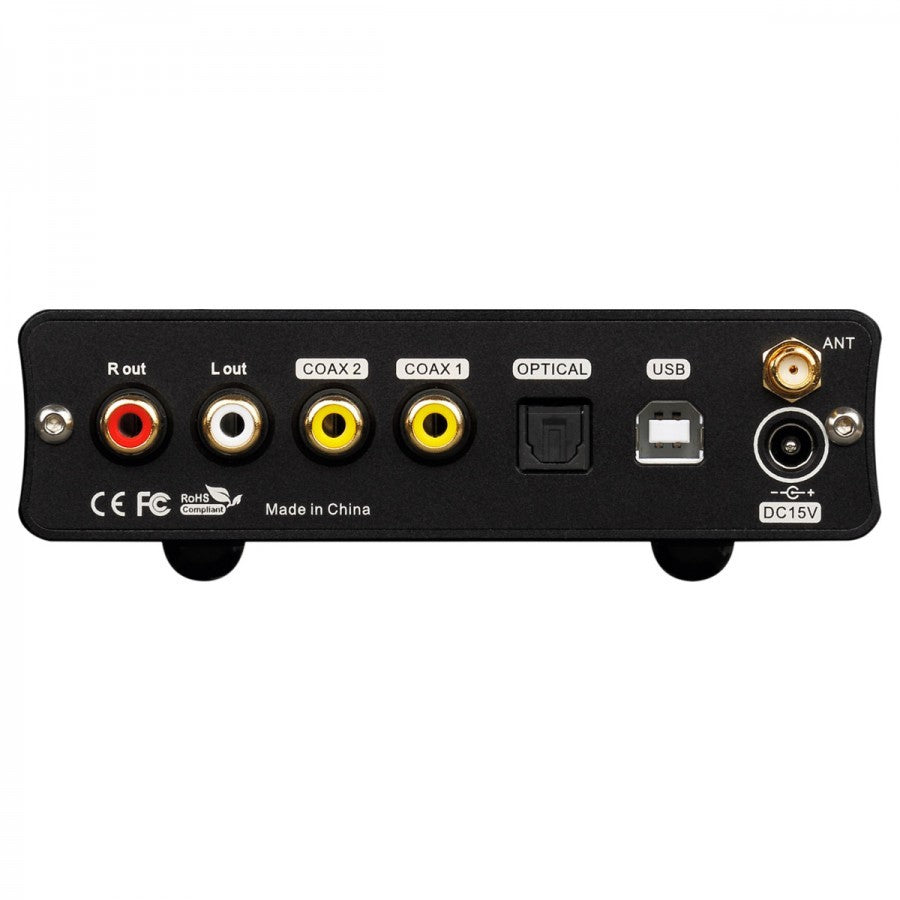

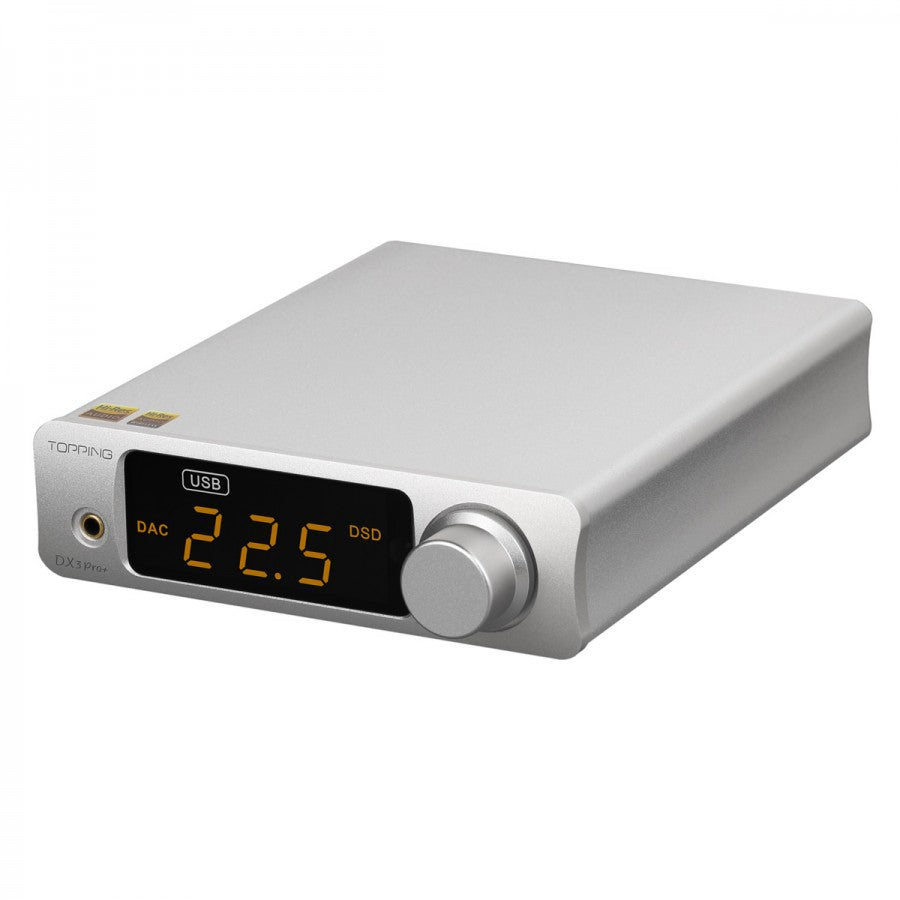

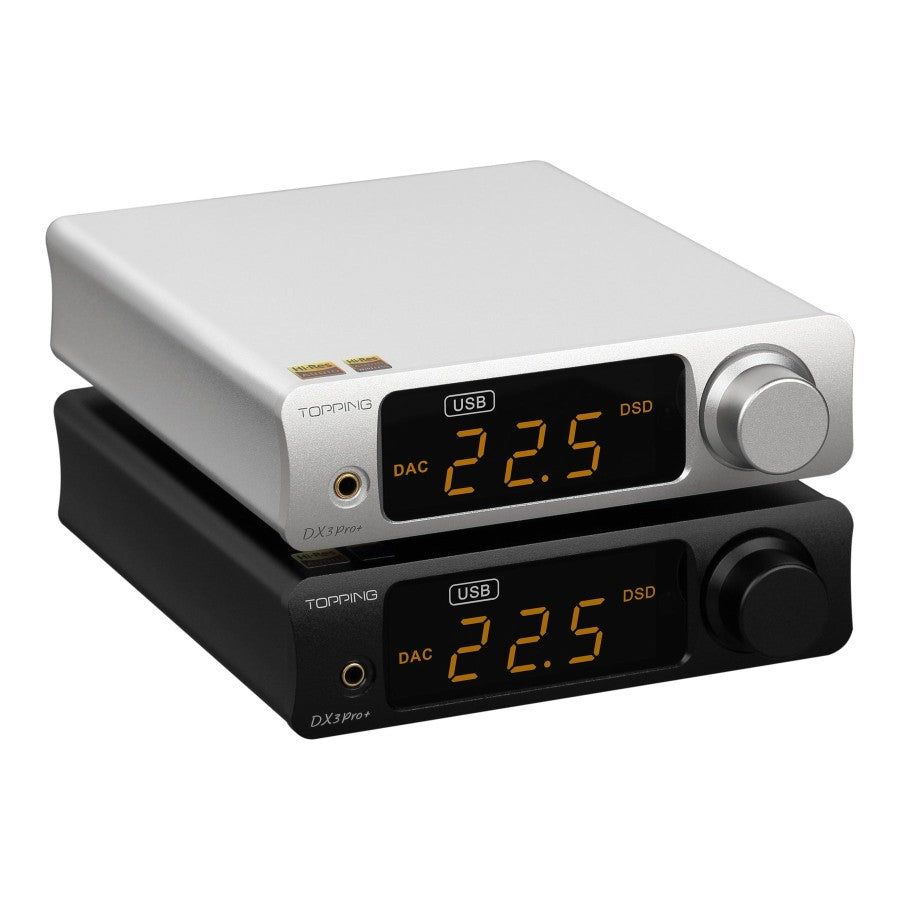

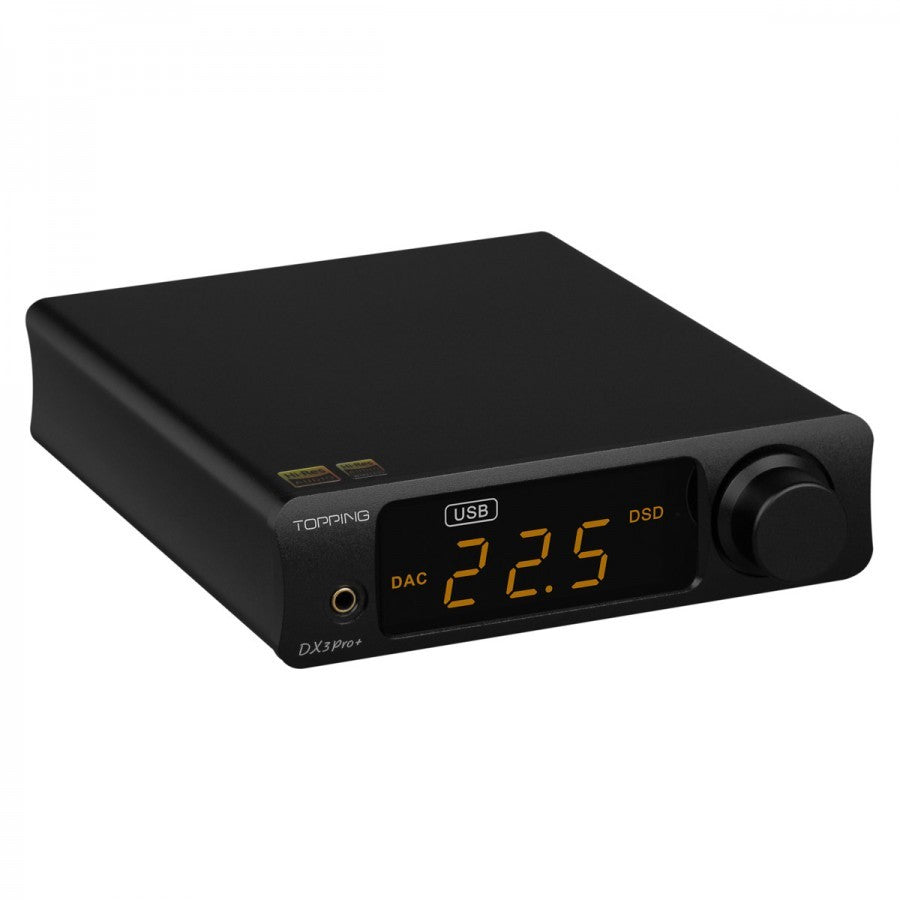

Topping DX3 Pro Plus

Bluetooth 5.0 LDAC

Hi-Res Audio Wireless and LDAC are supported with a Qualcomm QCC5152 chip. Unlike other DACs that decode Bluetooth codecs with the Bluetooth chip, the DX3 Pro+ uses the ESS ES9038Q2M chip for decoding for even better performance.

Plug and Play

Simply plug the DX3 Pro+ via USB into your PC or Mac to enjoy all the benefits of a high-end DAC without the need for drivers. Only higher-end ASIO applications on Windows 10 require a driver.

Low Noise NFCA Circuit

An optimized NFCA circuit provides powerful, distortion-free performance: 1800mWx2 @32Ω, 0.00015% THD+N.

High / Low Gain Settings

Two gain settings (+6dB/+19dB) make it easy to adjust for the varying impedances of IEMs and full-sized headphones.

Four Output Modes

Adapt to every listening situation with the DX3 Pro+’s four output modes: headphone amp, headphone amp + DAC, DAC, and preamplifier.

Features

• ESS ES9038Q2M DAC chip
• LDAC audio
• DSD512
• PCM768kHz
• XMOS XU208
• Built-in NFCA headphone amp
• Remote control

Specification

• Bluetooth 5.0 : Qualcomm’s QCC5125 Chip
• Bluetooth Codec : AAC, SBC, aptX, aptX LL, aptX HD, LDAC
• Decoding Chip : ES9038Q2M
• THD+N @1kHz (A-wt) : <0.00015%
• THD @20-200kHz (90kBW) : <0.00020%
• SNR : 122dB
• DNR : 122dB
• Output level : 2.1Vrms @0dBFS
• Noise (A-wt) : <1.8uVrms
• Channel crosstalk @1kHz : -137dB
• Channel balance : 0.3dB
• Output impedance : 20Ω
