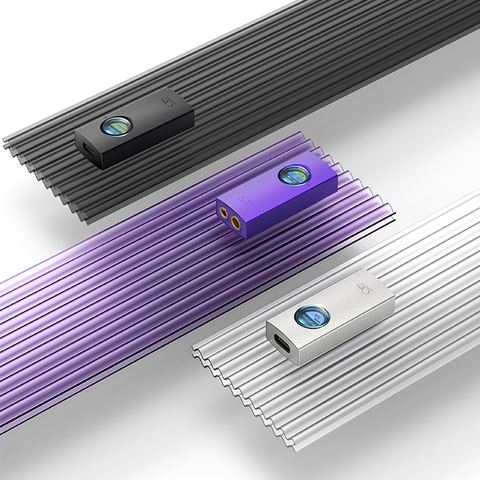

Shanling UA1 II / UA1 2nd Version

Refresh Look Compact Form

With its sleek shape and low weight at just 17.9. UA1 II is the ideal on the go HI-Fi solution for any smartphone. Compact enough to fit into a travel case along side the favorite air of earphones and just the perfect weight to never bother.

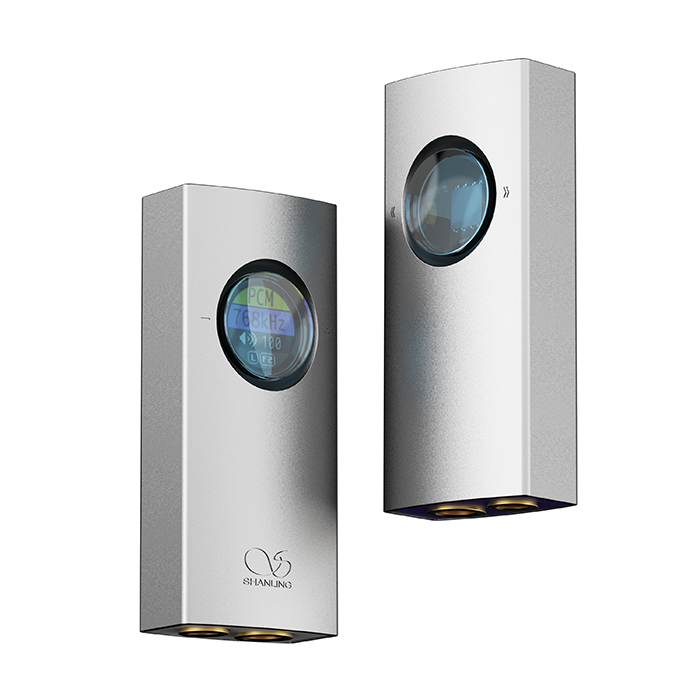

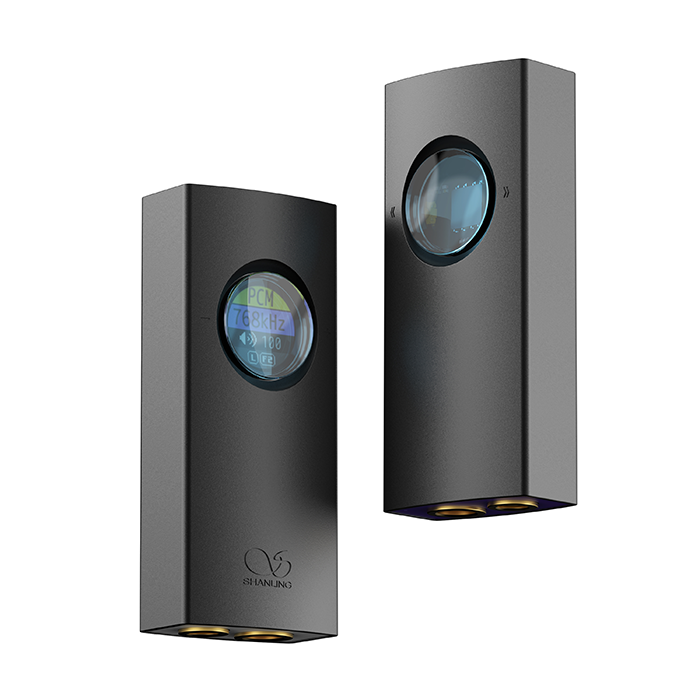

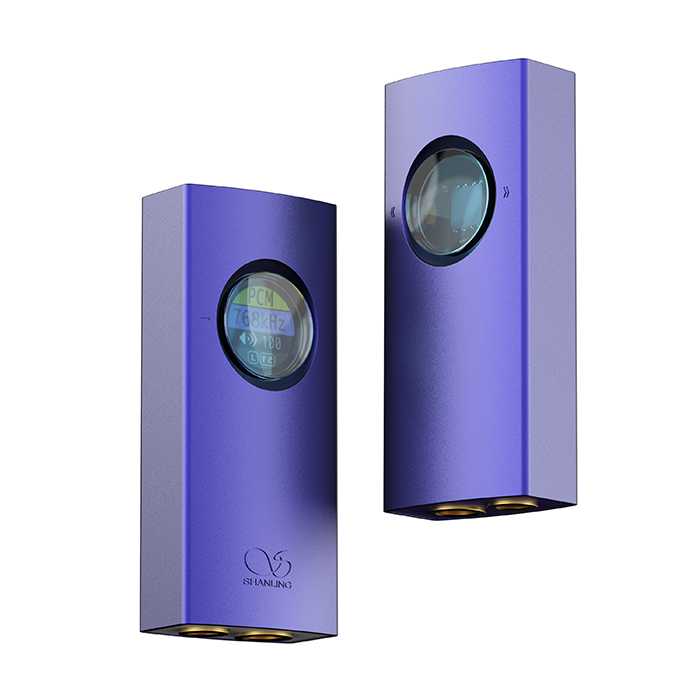

Dual Windows Design

Integrated Controls Two windows prominently placed on the front and the back of the UA1 II, serving both practical and aesthetic functions. The front window hides a convenient 0.96-inch screen, while the rear one provides an inner look into the DAC.

Windows with Integrated Buttons

Volume & Playback Controls Press on the left or right side of the windows to reveal the four hidden tactile buttons. Controlling volume, moving between tracks and serving as navigation for On-DAC settings.

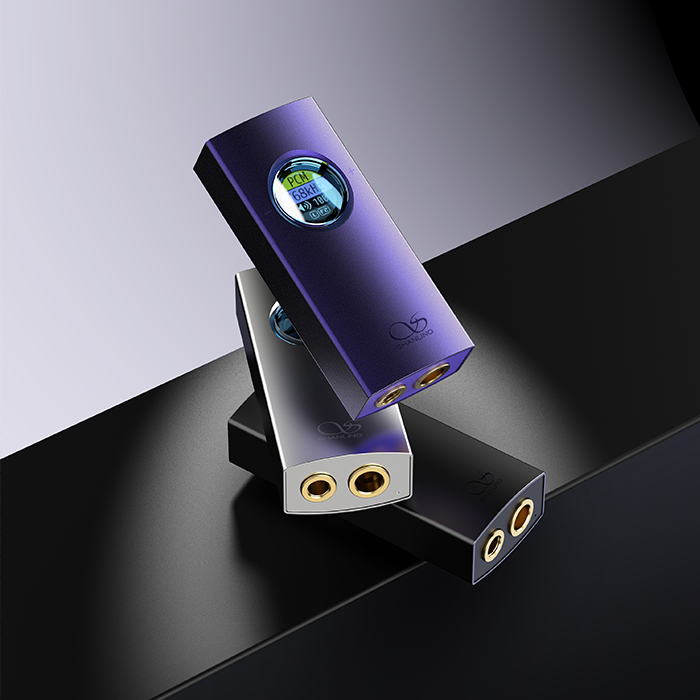

Dual Interface: 3.5mm & 4.4mm - Output Power: 240mW@32 Ohm

With the choice of both single-ended and balanced output, UA1 II becomes the most capable and the most powerful UA1 model of Shanling. Offering up to 240mW@32 Ohm, UA1 II will cover all the needs of even the most demanding earphones and will be running smoothly even with many full-size headphones.

UAC1.0 Switch Mode Gaming at Another Level

Switch to the UAC1.0 mode to enjoy the best gaming sounds with Nintendo Switch or other gaming consoles. UAC1.0 mode can also be useful when connection to older devices or power-limited devices.

Specification:

Dimensions: 52 x 22 x 13mm

Weight: 17.5g

Display: 0.96-inch LCD screen

Hi-Res Support: 32bit / 768kHz & DSD512

3.5mm Single-Ended Output

Output Power: 94mW@32 Ohm

Frequency Response: 20Hz-40kHz (+0.5dB)

Dynamic Range: 126dB@32 Ohm

Signal-to-Noise Ratio: 125dB@32 Ohm

4.4mm Single-Ended Output

Output Power: 240mW2@32 Ohm

Frequency Response: 20Hz-40kHz (+0.5dB)

Dynamic Range: 128dB@32 Ohm

Signal-to-Noise Ratio: 128dB@32 Ohm

Whats In The Box

USB C to USB C Cable

USB C to USB A Adapter

Manuals
