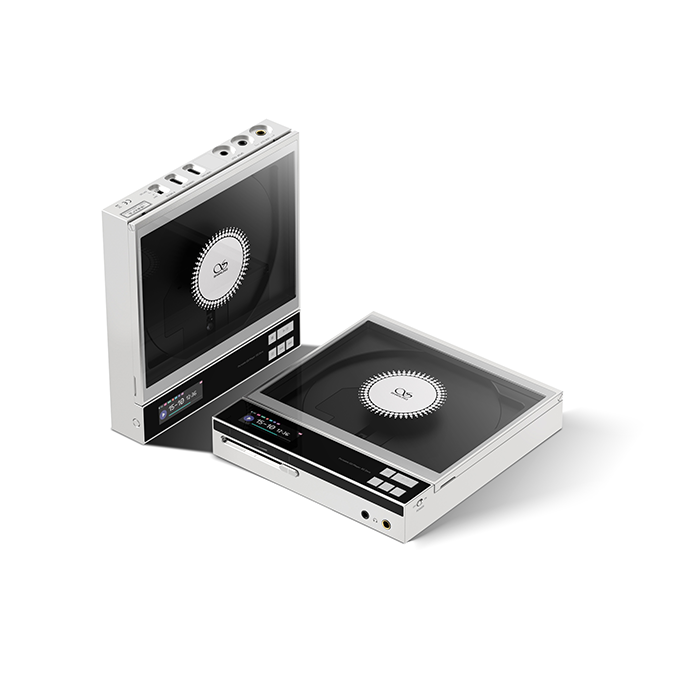

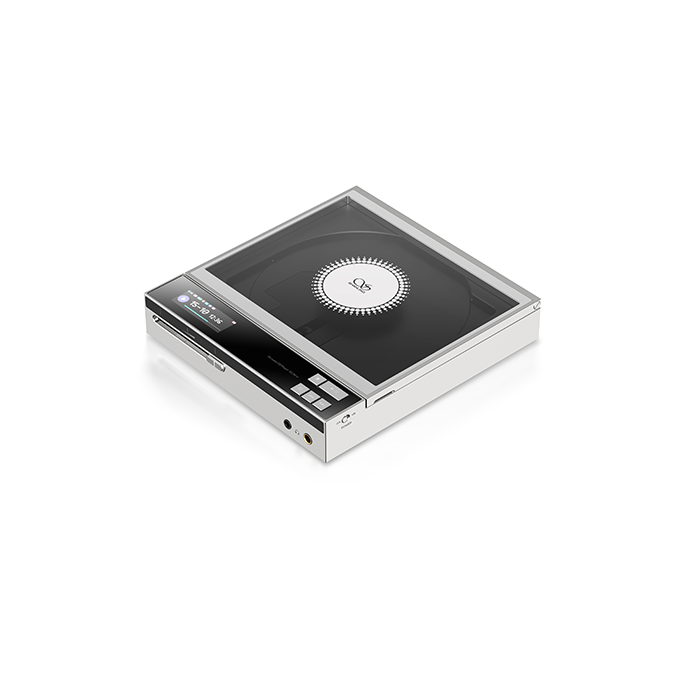

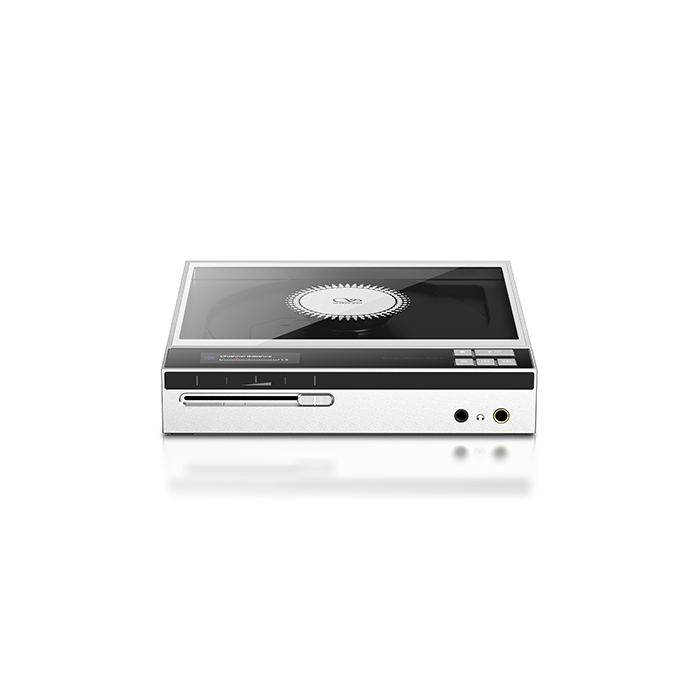

Shanling EC Zero

Smooth Side of High-Fidelity AKM AK4493S DAC & Dual SGM Amplifiers

AKM DACs play a big role in the audio designs of Shanling, with the AK4493S well proving its great capabilities in a range of our devices. Now EC Zero will utilize this DAC and all our extensive Hi-Fi knowledge to deliver warmer tuned and perfectly natural sounding CD playback on the go.

Headphone section features a pair of SGM8262 amplifiers, delivering a transparent and powerful output, reaching up to 836mW@32Ω. With the accurate 100-step volume control and swift volume slider.

Next Step for Shanling's Portable CD Players Active Magnetic Clamp

New active magnetic design continuously adjusts its position and pressure on the disc, effectively improving the stability of the spin, which significantly reduces undesired mechanical noise and vibrations of the CD drive.

Extended Battery Life

EC Zero runs on a built-in 5500mAh battery, providing total independence and Hi-Fi playback in all places and at any time. With the new audio circuit extending the battery life up to 10 hours.

And for desktop use, simply connect a USB-C Power adapter to the EC Zero, switching it into a dedicated External Power Mode to provide increased power output.

Specification:

Dimensions: 158 X 150 X 28mm

Weight: 575g

Screen: 1.68-inch LCD display

USB DAC Support: 768kHz/32bit & DSD512

DAC: AKM AK4493S

External Power Input: USB-C 5V/2A

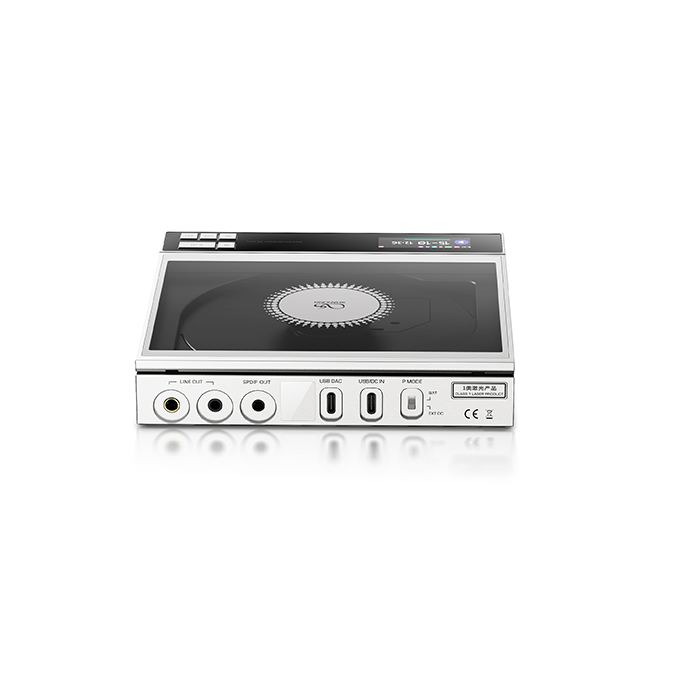

CD Ripping: 1x speed, to FAT32 USB Drive, WAV format Digital output: 3.5mm Combined Coaxial / Optical SPDIF

Bluetooth version: V5.3

Bluetooth Transmitter Codecs: aptX Adaptive, aptX, SBC

3.5mm Headphone Output

Output power:

Low Gain: 52mW@320

High Gain: 122mW@320

High Gain: 213mW@320 (External Power)

4.4mm Headphone Output.

Output Power:

Low Gain: 211mW@320

High Gain: 525mW@320

High Gain: 836mW@320 (External Power)

3.5mm Line-Out

Output Voltage: 2.05Vrms

Frequency Response: 20Hz-40kHz (-0.5dB)

4.4mm Line-Out

Output Voltage: 4.1Vrms

Frequency Response: 20Hz-40kHz (-0.5dB)
