Moondrop LAN

Impressive Sound With Newly-Designed Dynamic Driver Unit.

Moondrop has got years of experience in designing high-performance in-ear monitors with customized driver units. For their latest “LAN” they have featured a brand new 10mm dual-cavity dynamic driver unit. This driver adopts a large-size beryllium-coated dome structure along with N52-based powerful magnetic architecture and an ultra-thin CCAW voice coil that allows it to produce impressive clarity and resolution in the output.

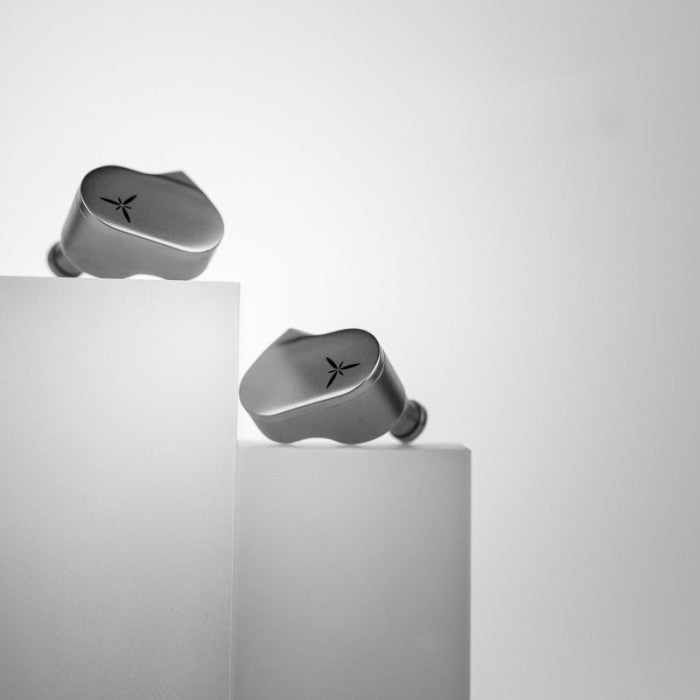

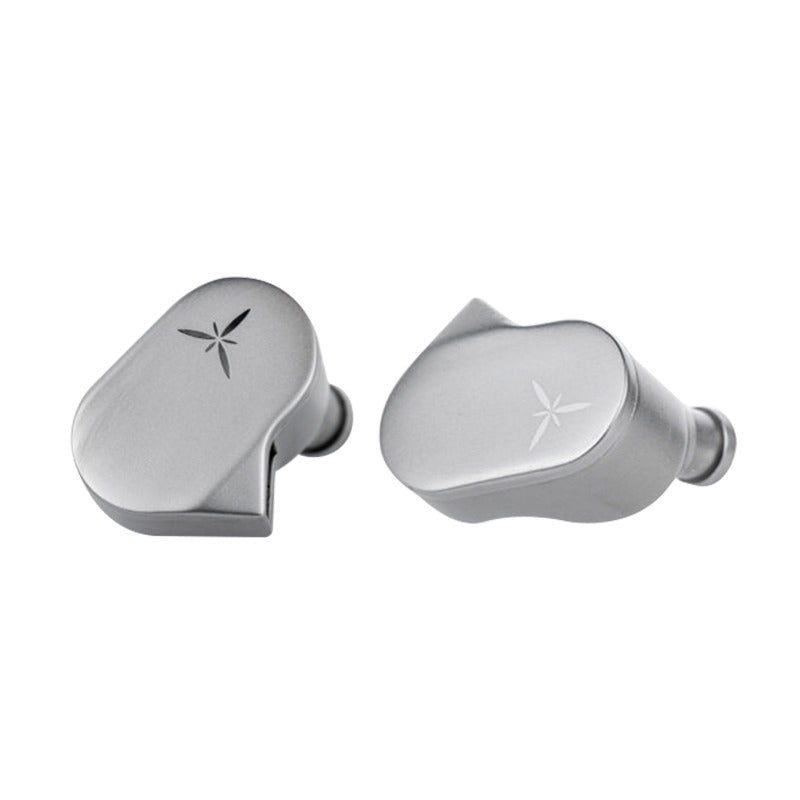

MIM Metallurgy Treated Stainless Steel Shells.

Moondrop has crafted the ear shells of the latest “LAN” using high-quality stainless steel material. The shells are treated with a MIM powder metallurgy process for improved durability which gives them a rich, textured finish.

Tuned In-Line With VDSF Target Response.

Moondrop has designed the LAN using their years of knowledge and expertise with High-performance audio gears. The frequency response for the pair falls in line with the VDSF Target Response and provides ultra-low distortion in the output signal.

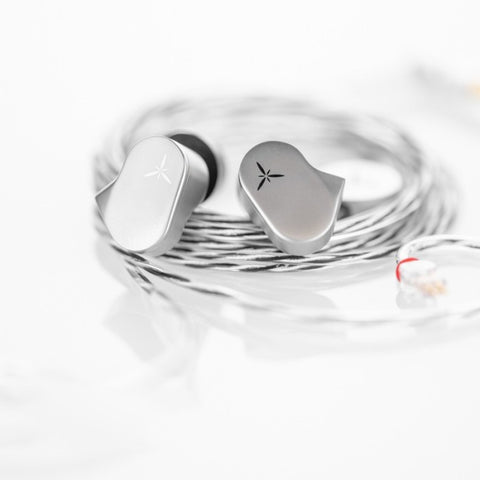

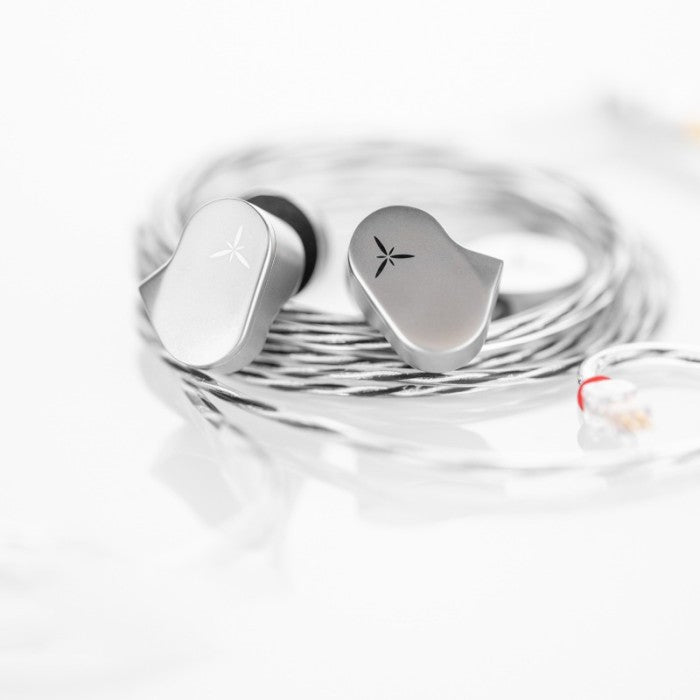

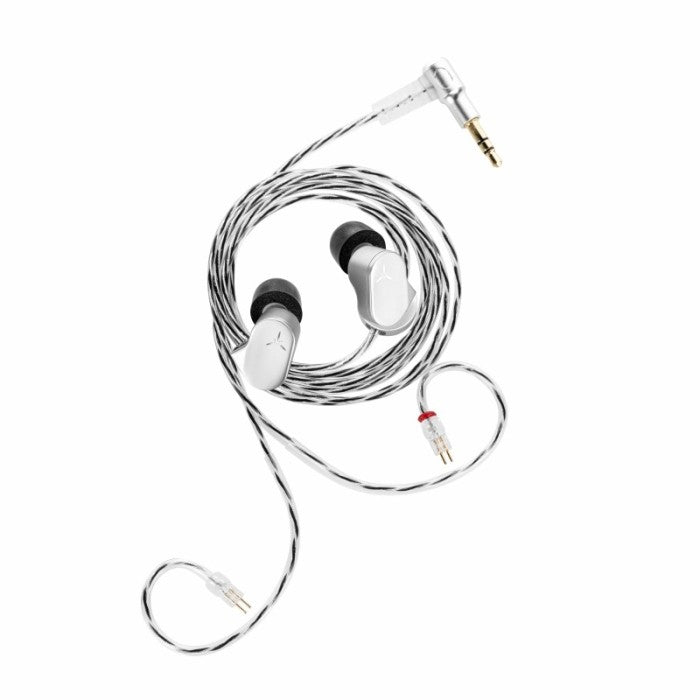

Two-Pin Connectors For Swappable Cables.

Moondrop LAN features a detachable cable with its two-pin 0.78mm connectors. You can easily replace the stock cable with an upgrade cable or Bluetooth cable, or any other cable that adopts 0.78mm connectors.

Lightweight, Ergonomic Form-Factor for Comfortable Fit.

In order to achieve a comfortable wearing experience with the LAN, Moondrop has designed the pair in an ergonomic shape.

Specification

• Driver : 10mm dual-cavity high-performance dynamic driver
• Coil : 0.03mm ultra-thin CCAW
• Headphone Jack : 0,78mm-2pin
• Plug : 3.5mm single-ended
• Frequency Response : 15Hz-37kHz
• Impedance : 32Ω±15% (@1kHz）
• Sensitivity : 120dB/Vrms (@1kHz）
• THD : THD≤0.5% (@1kHz,94dB)
