Moondrop KADENZ

Unmatchable Dynamic Driver Structure and Material Technology

MOONDROP's K-Series not only established a benchmark for dynamic driver IEMs by leveraging the latest materials and technology, it also made repeated breakthroughs in dynamic driver performance.

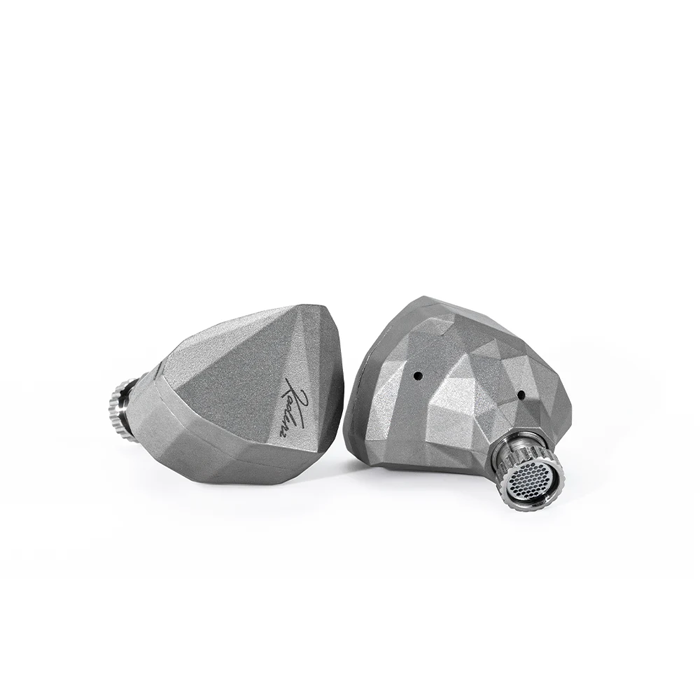

Replaceable Nozzle Design

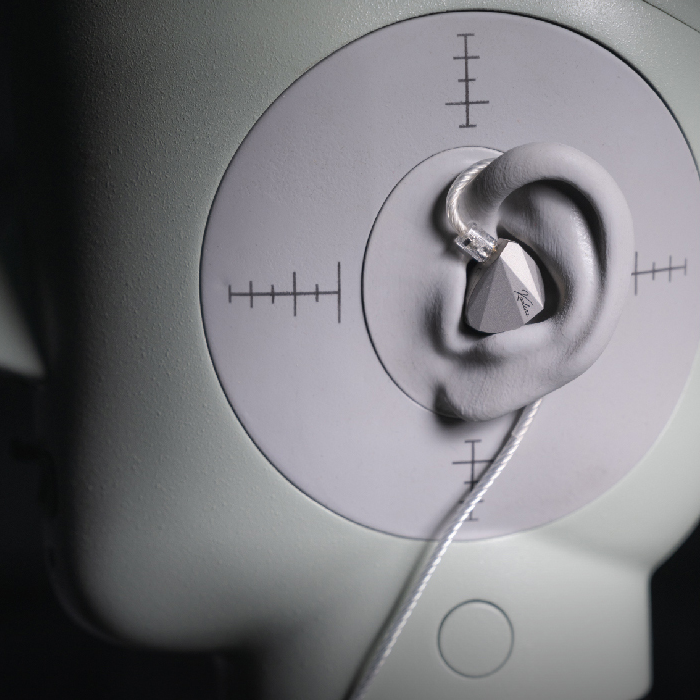

Three Nozzles to Match the Acoustic Coupling of Different Ear Canals. Because of individual differences in the structure of the ear canal, ultra-high frequency coupling will vary, and it is difficult to derive average values using standard.

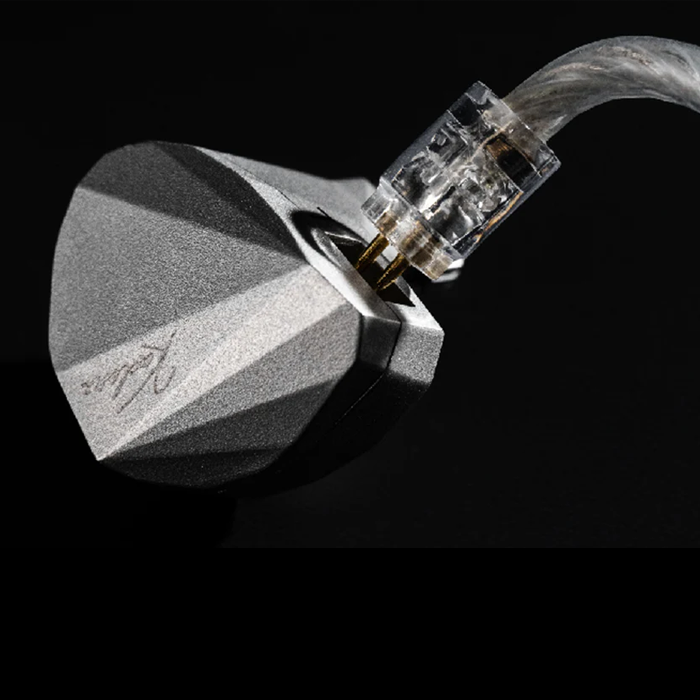

High-Quality Single-Crystal Copper Silver-Plated Cable with Replaceable Plug

Kadenz ships with a high-quality single-crystal copper silver-plated Litz cable, and is equipped with 3.5mm single-ended and 4.4mm balanced replaceable plugs for easy matching to different playback devices.

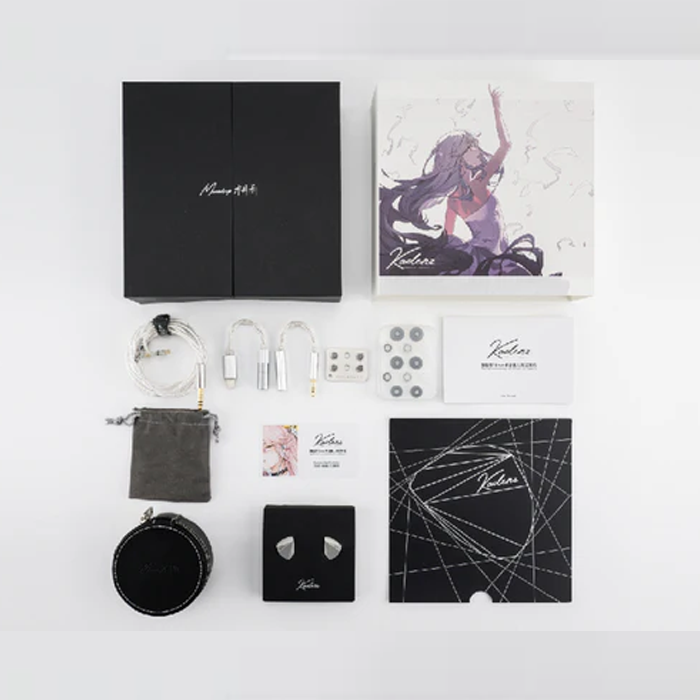

Ships with ECHO-B Fully Balanced Decoding Cable

Kadenz comes with the ECHO-B online interactive DSP USB-C decoding cable, which can decode 32-bit/384kHz high-resolution PCM audio sources and reproduce more music details. It has a 4.4mm fully balanced output, providing good power for the Kadenz.

USB-C Wired Connection Lossless Sound Quality - Easy-to-use Fully Compatible with Android and iOS

The ECHO-B uses a USB-C universal plug, making it compatible with smartphones, laptops, computers, and iPhone 15 without needing a driver. It is fully compatible with MAC, PC, Android, and iOS, and offers lossless sound quality. ECHO-B is equipped with a new online interactive DSP. In addition to the five built-in tuning configurations, users can also select different tuning configurations or customize parametric equalizers through the new MOONDROP APP.

Specification:

Driver:10mm [ULT-Gen2] patented* dynamic driver
Diaphragm: TAC Diamond-Coated Dome Composite Diaphragm
Sensitivity: 122dB/Vrms(@1kHz)
Impedance: 35 Ohm±15%(@1kHz)
Frequency Response: 8Hz-21kHz(IEC61094, Free Field)
Effective Frequency Response: 20Hz-20kHZ (IEC60318-4,-3dB)
Cable Jack: 0.78-2pin
THD: ≤0.03%(@1kHz,94dB)
