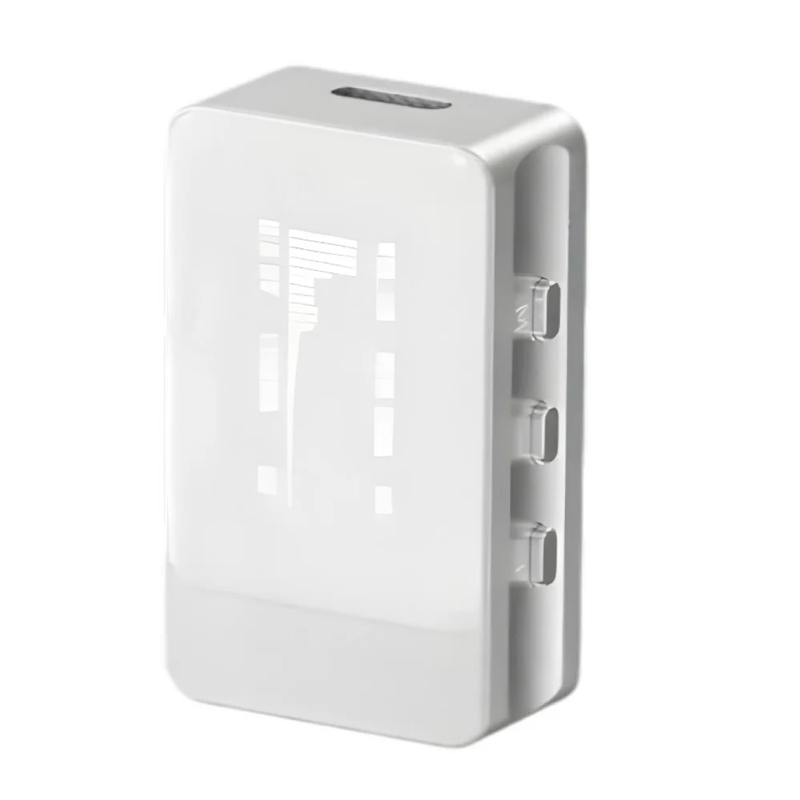

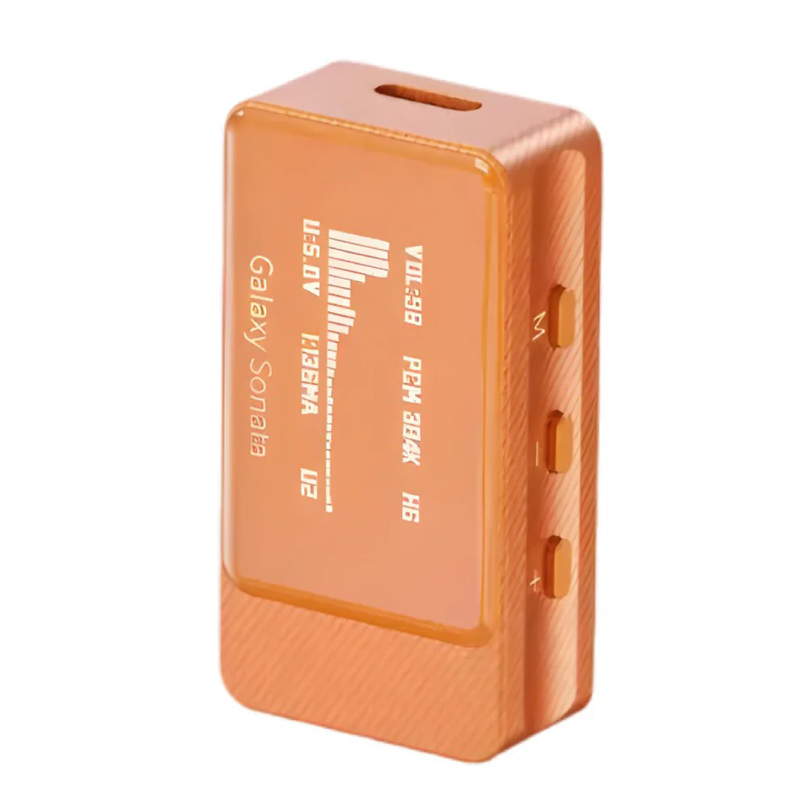

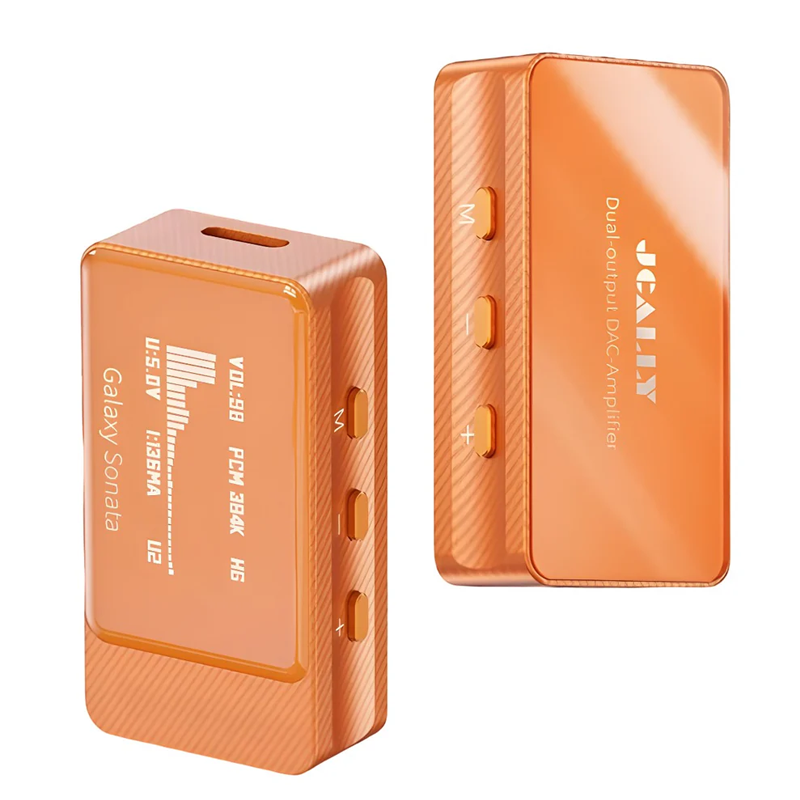

JCALLY Galaxy Sonata

Dual CS43198 DAC Chips With Dual SGM8262 Amplifiers For High-Resolution Decoding

JCally Galaxy Sonata equips dual CS43198 DAC chips paired with dual SGM8262 amplifier stages to deliver audiophile-grade decoding performance and dynamic range. The integrated SGM8262 amplifiers contribute a rich and natural tonal character while providing sufficient power to drive demanding headphones with ease.

Tailor Your Audio - Audiophile DSP Processing With Multi-Level EQ Adjustment

JCally Galaxy Sonata employs an integrated audiophile DSP engine supporting 10-band EQ adjustment for flexible sound customisation. Users can quickly switch between preset profiles including HiFi, Reference, Bass, Treble, and Clear through convenient one-click EQ mode selection.

Features Type-C OTG Connectivity With Wide Multi-Device Compatibility

JCally Galaxy Sonata implements a USB Type-C interface with OTG cable support, enabling seamless connectivity with smartphones, tablets, laptops, and gaming consoles. The device defaults to UAC1.0 mode for compatibility with platforms such as Nintendo Switch, PS5, and older systems, while UAC2.0 mode allows higher sampling rate operation up to 24-bit/96kHz.

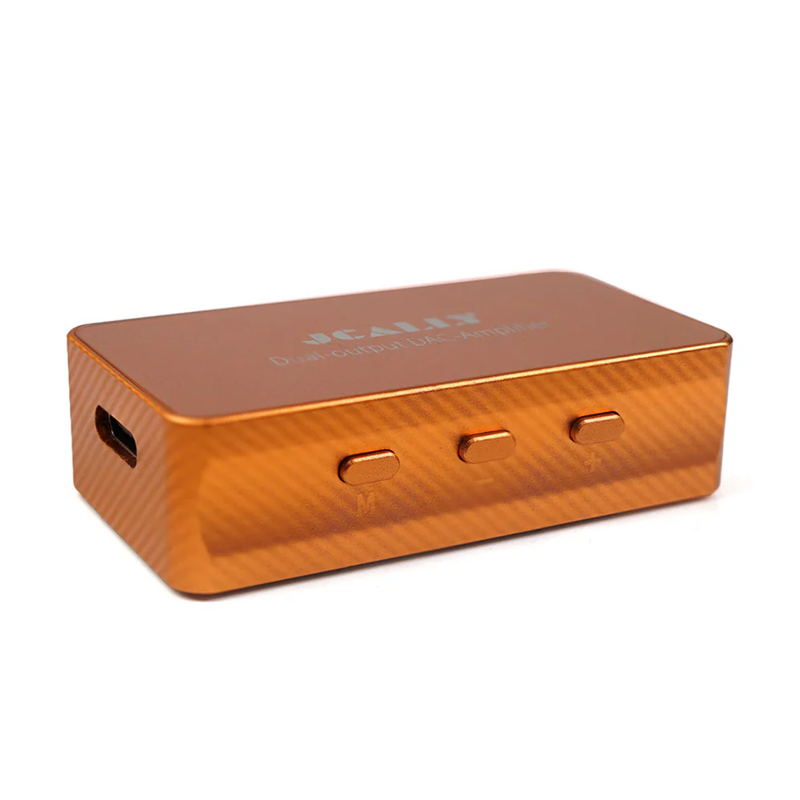

Crafted In A CNC-Machined Chassis With Premium Carbon Fibre Texture Finishes

JCally Galaxy Sonata incorporates a precisely crafted chassis featuring refined curved lines and a distinctive carbon fibre texture shell that enhances grip and durability. The design combines precision CNC machining with an anti-slip surface finish for improved tactile feel.

Specification:

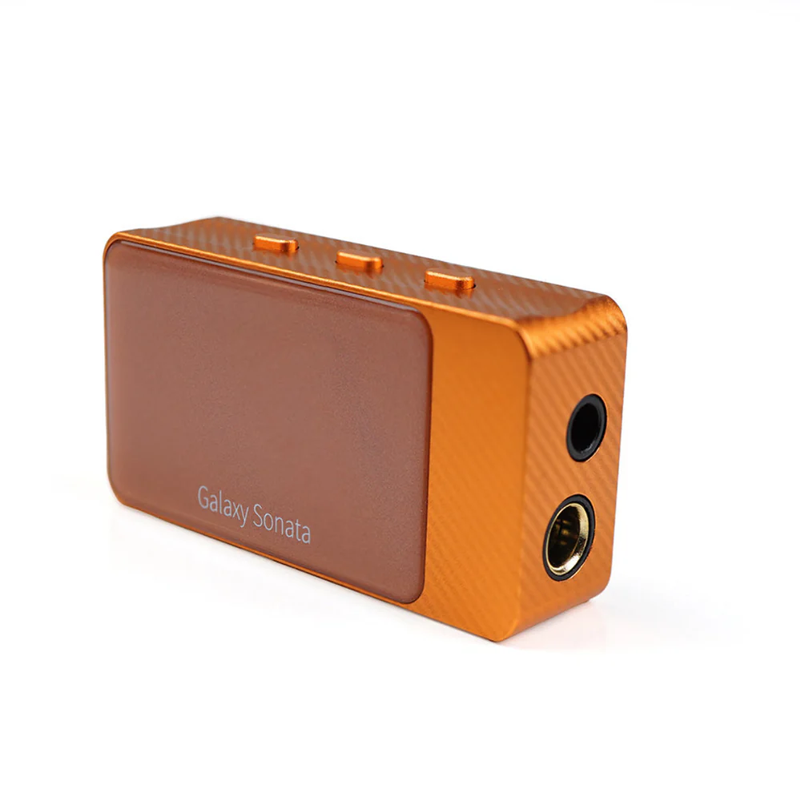

Output: 4.4mm (Balanced) & 3.5mm (Single-Ended)

Input: Type-C

DAC Chip: Dual Cirrus Logic CS43198

Amplifier Chip: Dual SG Micro SGM8262

PCM: Maximum 32bit / 384kHz

DSD: Maximum DSD256 (Native)

Weight : 17.5g

Size: 46.6mm × 24.8mm × 12.9mm

Output Power

SE 3.5mm: 180mW (32Ω / THD+N <1%)

BAL 4.4mm: 560mW (32Ω / THD+N <1%)

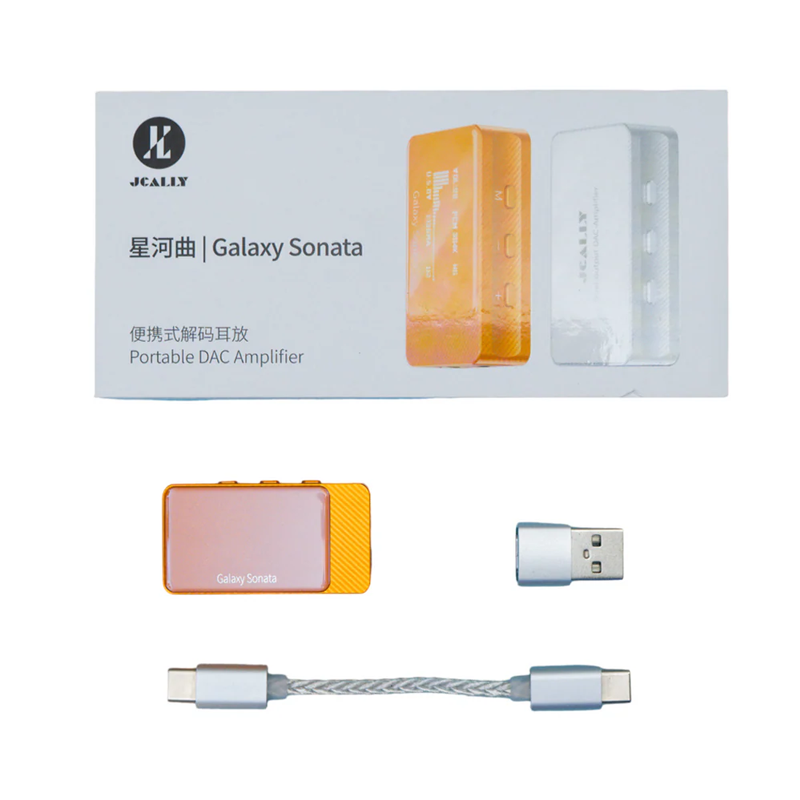

What In The Box:

1. JCally Galaxy Sonata

2. USB-C to USB-C Cable

3. USB Adapter

4. Manual
