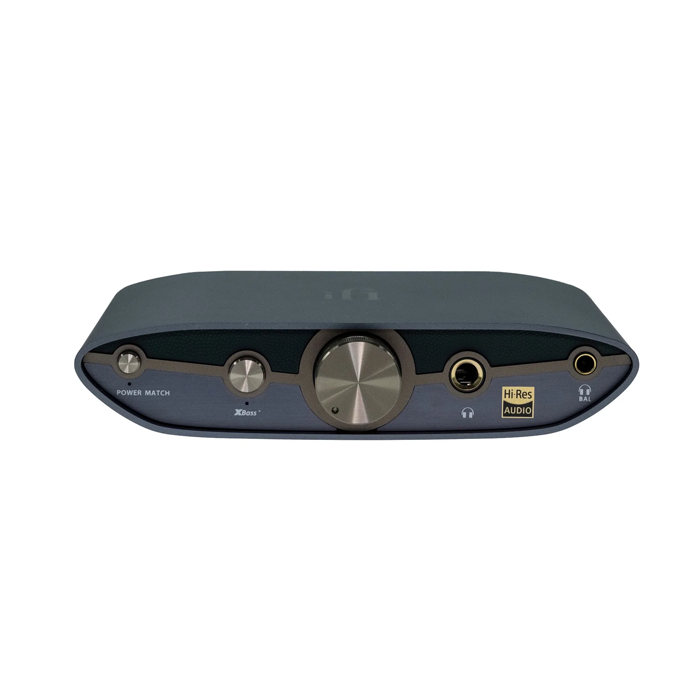

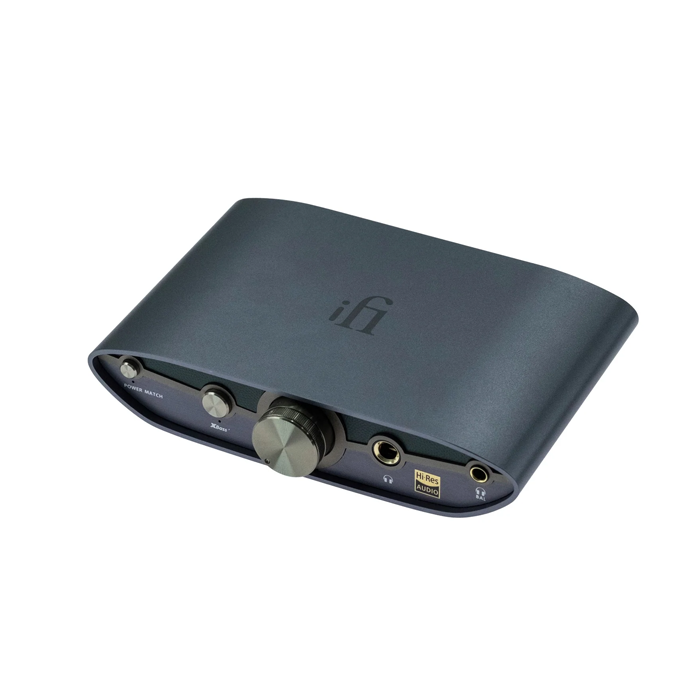

iFi Audio ZEN DAC 3

PLUG-IN. WORLD OUT.

In a world full of noise, welcome to ZEN. Today the world is busy, fast and full of noise. IFi knows the power of music and how it’s capable of taking you out of this world and someplace new, tranquil, and where melodies can uplift and vocals can move you to tears.

IfI's new DAC, with its sleek design and unparalleled performance, immerses you in a world of pure harmony. Rediscover your music and be transported to purity with the ZEN DAC 3.

BEAUTIFULLY BALANCED

ZEN DAC 3 features two 4.4mm balanced outputs, one for headphones and one for other amplifiers, effectively minimizing distortion and crosstalk.

POWER UP, PROTECT ON!

DC offset output voltage has been improved in the ZEN DAC 3. This means less audible clicks while switching functions. ZEN DAC 3 also benefits from input over-voltage protection via the all-new USB-C port.

DAC-TIVATE YOUR SPEAKERS

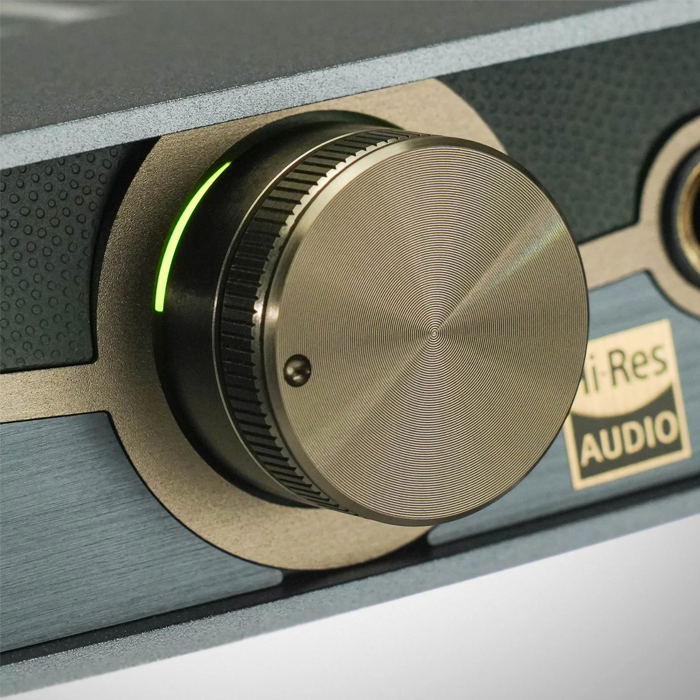

The iFi Zen DAC 3 features a Variable or Fixed output switch which enables/bypasses the volume knob for flexible application:

Use Variable mode when plugging ZEN DAC 3 directly to active speakers or with headphones
Use Fixed mode when running line outputs to a receiver or main amplifier

Key Features:

1. Ultra-res audio: PCM 768kHz, DSD 512 and Full MQA Decoding
2. USB-C input for plug-and-play connectivity
3. Fixed or variable output gain for optional preamp functionality
4. Improved DC offset and USB-C input over-voltage protection
5. 4.4mm balanced headphone and line outputs
6. XBass+ and PowerMatch analog processing modes

Specification:

Digital Input: USB-C

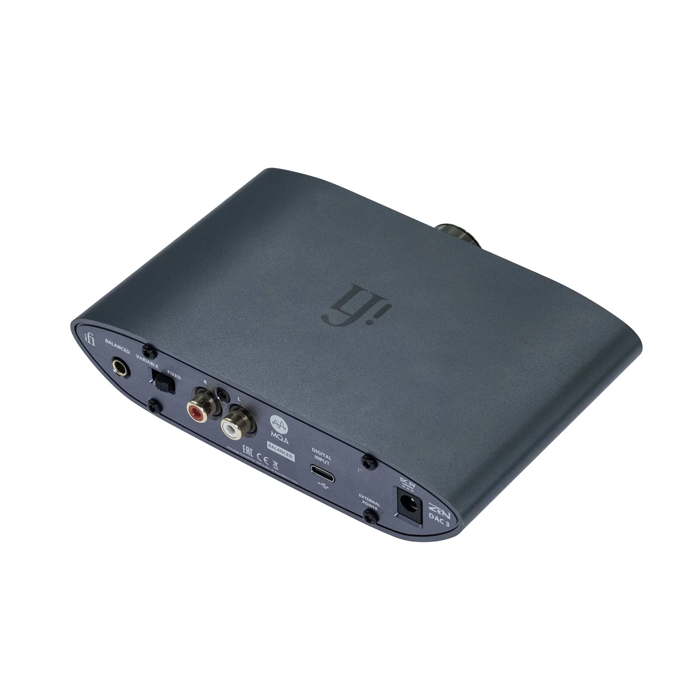

Analog Output: 4.4mm BAL | RCA
Headphone Output: 4.4mm BAL | 6.3mm SE
Hi-Res: 768kHz PCM | DSD512 (22.6MHz) | full MQA decoding
Frequency Response: 5Hz - 90kHz (±3dB)
Power Supply Req: USB-C or DC 5V/0.5A (center +ve)
Power Consumption: No Signal ~0.5W | Max Signal ~2.5W
Dimensions: 6.2" x 4.6" x 1.4"

Whats In The Box:

1. ZEN DAC 3
2. RCA Cable
3. 3.5mm to 6.3mm adapter
4. Zen DAC 3 Quick Start Guide
5. Instruction Card
